Block ice production machine BIM5TCOS

for the food industry

Overview

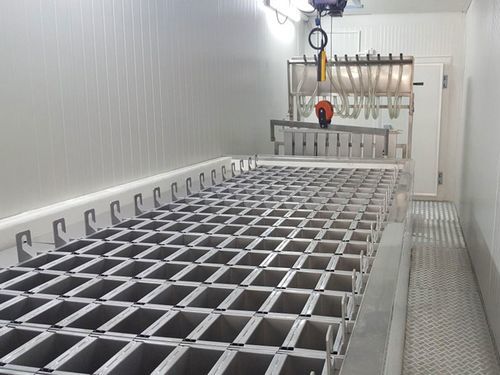

The Tamutom BIM5TCOS containerized block ice machine with integrated cold room produces 5,000 kg of block ice per day and stores the product in an on-board refrigerated chamber. It is engineered for continuous, high-capacity operation in industrial environments such as fishing hubs, seafood processing, meat and poultry plants, beverage production, fresh-produce exporters and concrete-cooling projects.

Integrated Cold Room Performance
The built-in cold room preserves block ice at -5°C to -10°C, reducing melt and quality loss in hot climates and enabling immediate dispatch or use from the same unit.

Technical specifications

• Total ice making capacity: 5,000 kg/day
• Ice blocks per shift: 112 blocks
• Individual block weight: 15 kg (10 cm × 20 cm × 70 cm)
• Production time per shift: 7–8 hours
• Daily block production (3 shifts): 336 pcs
• Power supply: 380–415 V, 3 phase, 50–60 Hz
• Ice temperature: -12°C
• Refrigerant: R404A (Freon)
• Unit weight: 7,500 kg
• Unit dimensions: 40 ft standard container
• Power consumption: 21.20 kW/h
• Compressor capacity: 30 HP
• Condenser: Air condenser, 33,898 m³/h
• Container type: 40 ft standard insulated container with sandwich panels
• Cold room insulation: 100 mm sandwich panels and dedicated cooling unit
• Cold room internal dimensions: 300 cm × 200 cm × 250 cm

Key features and commercial benefits

• High-capacity block ice production (5,000 kg/day) combined with integrated storage for immediate preservation and reduced handling.
• Cold room temperature range of -5°C to -10°C minimises melt and product loss in hot climates.
• Containerized design enables rapid deployment, relocation and simplified logistics at ports and remote sites.
• Standard 40 ft container format facilitates transport and integration with existing port or plant infrastructure.

Recommended applications

• Seafood processing and export terminals (tuna, shrimp, fish landings)
• Meat and poultry processing facilities
• Beverage and food producers requiring block ice for cooling
• Fresh-produce exporters and cold-chain logistics centres
• Construction projects for concrete cooling
