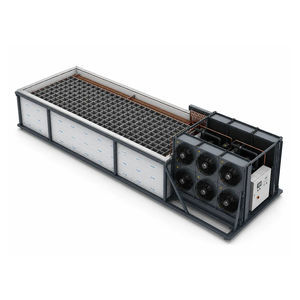

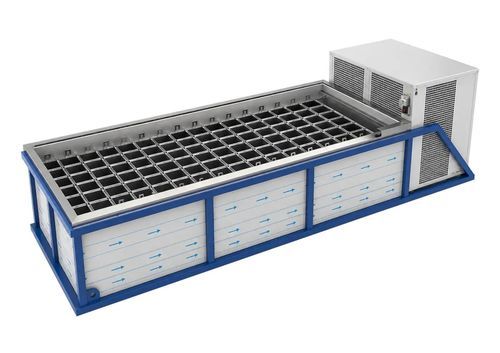

Block ice production machine BIM5T

Product Overview
The Tamutom BIM5T 5,000 kg/day Block Ice Machine is a modular industrial system for continuous large-scale block ice production. It produces dense block ice at -12 °C and is available in brine (salt-water) and fully automatic direct-cooling configurations. Designed for commercial ice plants and industrial users requiring stable daily supplies of consistent block ice, the unit supports continuous operation with simplified maintenance.

Modular Block Ice Machine Technical Data — Brine Type
Total ice making capacity: 5,000 kg/day
Ice blocks per shift: 112 blocks
Weight per block: 15 kg (12 × 21 × 70 cm)
Production time per shift: 7–8 hours
Daily ice block production: 336 blocks
Power supply: 380–415 V, 3 phase, 50–60 Hz
Ice temperature: -12 °C
Refrigerant: R404A
Machine weight: 2,200 kg
Machine dimensions: 570 × 170 × 150 cm
Power consumption: 20.40 kW/h
Compressor capacity: 30 HP
Condenser and capacity: Air-cooled condenser / 33,898 m³/h

Key Features and Commercial Benefits
The Tamutom BIM5T is engineered to optimize industrial ice production costs and output. Producing approximately 336 high-density blocks per day, it enables vertical integration of ice supply, reduces reliance on external vendors and creates new revenue streams. Industrial-grade refrigeration components and a high-performance compressor provide reliable continuous operation with minimized maintenance requirements.

Why Choose the Tamutom BIM5T?

• Produces 5 tons of block ice per day
• Suitable for commercial ice manufacturing
• Industrial-duty design for continuous operation
• Energy-efficient refrigeration system
• Reliable performance with minimal maintenance
• Suitable for hot-climate installations
• Designed for long service life
• Strong return on investment

Typical Applications

• Commercial ice production plants
• Fisheries and seafood processing facilities
• Fish markets
• Beverage manufacturers
• Food processing factories
• Meat and poultry processing plants
• Fruit and vegetable packing facilities
• Agricultural storage operations
• Cold chain logistics companies
• Wholesale food markets
• Ice distribution businesses
• Ports and harbors
• Emergency food preservation projects

Technical specifications

• Capacity: 5,000 kg/day
• Daily blocks produced: 336 blocks
• Blocks per shift: 112 blocks
• Block weight & dimensions: 15 kg (12 × 21 × 70 cm)
• Production time per shift: 7–8 hours
• Ice temperature: -12 °C
• Refrigerant: R404A
• Power supply: 380–415 V, 3 phase, 50–60 Hz
• Machine weight: 2,200 kg
• Machine dimensions: 570 × 170 × 150 cm
• Power consumption: 20.40 kW/h
• Compressor capacity: 30 HP
• Condenser: Air-cooled, 33,898 m³/h
