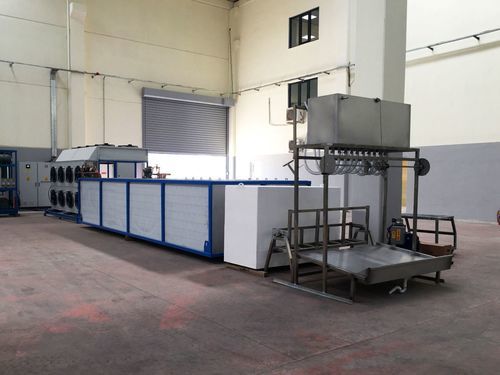

Ice maker BIM20T

Modular block ice machine — Technical data
Total production capacity: 20,000 kg/day
Blocks per work shift: 400 blocks
Weight per block: 25 kg (12 cm × 21 cm × 70 cm)
Production time per shift: 12 hours
Daily block output: 800 pieces
Power supply: 380–415 V, three-phase, 50–60 Hz
Ice temperature: -12 °C
Refrigerant: R404A
Unit weight: 10,500 kg
Unit dimensions: 1200 cm × 225 cm × 150 cm
Electrical consumption: 79.20 kW/h
Compressor power: 120 HP
Condenser and airflow: Air-cooled condenser / 135,240 m³/h

Applications and commercial benefits
The 20,000 kg/day block ice machine is designed for high-demand industrial applications such as mega fishing ports, national food security facilities, large seafood exporters, beverage factories and integrated cold-chain hubs. With continuous production capacity, the unit can supply ice simultaneously to fishing fleets, refrigerated trucks, containers and processing plants.
Block ice delivers long-duration cooling and thermal stability, making it suitable for long-haul logistics, tropical climates and high-volume distribution. It is also used for concrete temperature control in large infrastructure projects including dams, ports, airports and power plants.

Features / technical specifications

• Total production capacity: 20,000 kg/day
• Blocks per shift: 400 blocks
• Weight per block: 25 kg (12 cm × 21 cm × 70 cm)
• Production time per shift: 12 hours
• Daily block output: 800 pieces
• Power supply: 380–415 V, three-phase, 50–60 Hz
• Ice temperature: -12 °C
• Refrigerant: R404A
• Unit weight: 10,500 kg
• Unit dimensions: 1200 cm × 225 cm × 150 cm
• Electrical consumption: 79.20 kW/h
• Compressor power: 120 HP
• Condenser and airflow: Air-cooled condenser / 135,240 m³/h
