Stepper motor iMOT233S TM-CAT
DC48 V24 V

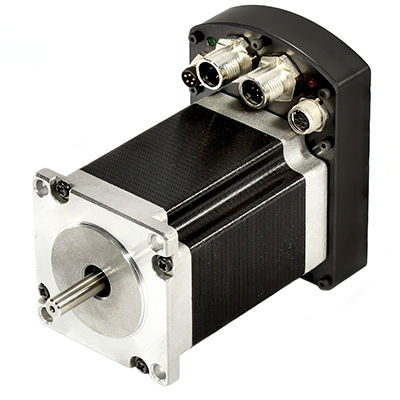

Stepper motor - iMOT233S TM-CAT - Technosoft - DC / 48 V / 24 V
Stepper motor - iMOT233S TM-CAT - Technosoft - DC / 48 V / 24 V
Add to favorites
Compare this product
Go to the Technosoft website for more information

Characteristics

Type
stepper, DC
Voltage
48 V, 24 V, 12 V, 36 V, 18 V, 30 V, 14.4 V, 20 V, 42V, 28V, 16 V, 21.6 V, 40 V, 19.5 V, 43.2 V, 14V, 15 V
Configuration
NEMA 23
Protection class
IP20
Number of poles
2-pole
Cooling mechanism
air-cooled
Applications
industrial, for medical equipment, for robotics, for rotary tables, for nuclear applications, for conveyors, centrifuge, for machine tools, packaging machine, for the chemical industry, for the semiconductor industry, for automatic doors, for medical applications, for wood-processing machines, for the electronics industry, optical, for the textile industry, for dispensers, for the pharmaceutical industry, for centrifugal pumps
Other characteristics
high-precision, low-voltage, integrated-drive, precision, closed-loop, with control system, low-speed, variable-speed, programmable, motion control, constant speed, with integrated inverter, servo-driven, with integrated controller, EtherCAT, RS-232, with electronic control, with built-in electronics, TMLCAN, with speed controller, with integrated motion controller, with built-in encoder
Power

80 W
(0.11 hp)

Max.: 100 W
(0.14 hp)

Min.: 0 W
(0 hp)

Intensity

2.8 A

Max.: 2.8 A

Min.: 0.01 A

Torque

1.6 Nm
(1.180099 ft.lb)

Max.: 1.6 Nm
(1.180099 ft.lb)

Min.: 0 Nm
(0 ft.lb)

Rotational speed

500 rpm
(3,141.5927 rad.min-1)

Max.: 700 rpm
(4,398.2297 rad.min-1)

Min.: 0.01 rpm
(0.0628 rad.min-1)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: 0 °C
(32 °F)

Description

Intelligent stepper motor with embedded motion controller, position feedback, RS232 and EtherCAT interface. The integrated control system reduces the amount of wiring required for power supply and communication, and improves electromagnetic compatibility significantly. The intelligent motor is already optimally designed, ready for immediate operation and thus enables simple integration in small spaces. Electrical characteristics: Operating voltage: 12 - 48 VDC / nominal current: 2.8 A Nominal torque: 1.6 Nm @ 750 rpm No load speed: 1400 rpm @ 48 VDC Communication: RS232 - up to 115 Kbit/s EtherCAT - with CANopen over EtherCAT (CoE) protocol Digital and analog inputs/outputs: 4 digital inputs: 5-24 V, NPN or PNP configurable 2 digital outputs: 5-24 V, NPN (0.4A) or PNP (0.3A) configurable 1 analog input: 12 bit, 0-5 V Feedback: Integrated magnetic single-turn absolute encoder with a resolution of 4096 increments per revolution (12 bit). Safety: Protection against over-current, over-temperature, under-voltage and over-voltage, I2t and following error. Control features: Via EtherCAT bus or analog / digital inputs Through autonomous execution of complex motion sequences directly from the non-volatile memory of the integrated controller
