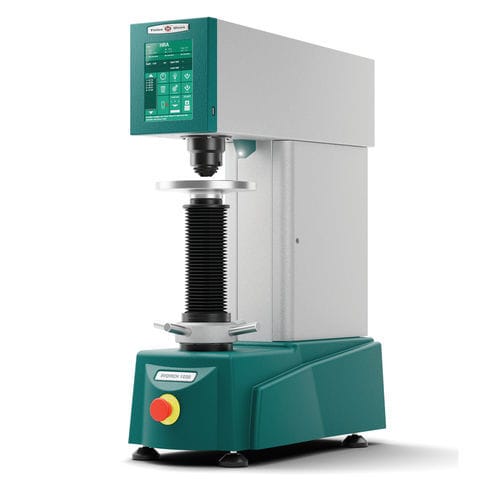

Rockwell indentation hardness tester Evotech 1020

Brinellbenchtopfor automobiles

The model Evotech 1020 combines today’s load application technology with a top class depth measuring system. Rockwell, Superficial Rockwell & Brinell scales are part of the machine’s capabilities. High accurate test results and fast operation make it the best in its class today. This model provides a smart user interface, easy to learn and with internal and external data storage options. Test forces range from 1-250kgf, which means that even this basic model is equipped with Rockwell, Superficial Rockwell and Brinell load settings. System control is managed via a simple-to-use 6.5in full color industrial touchscreen. The touchscreen will also display results and statistics. Features and benefits Loadcell, closed loop, force feedback system Load range 1-250kgf (9.8-2452N) Meets or exceeds ISO, ASTM and JIS standards Direct depth measurement on indenter shaft Depth reading tolerance 0.05μm Clamping nose to fix workpiece & indenter protection Integrated LED sample illumination Integrated industrial PC, windows 10 licensed Industrial 6.5” touch screen Multi USB, LAN, WLAN connectivity Massive full steel C-frame for best GR & R results Replaceable ABS bottom cover avoids body damage
