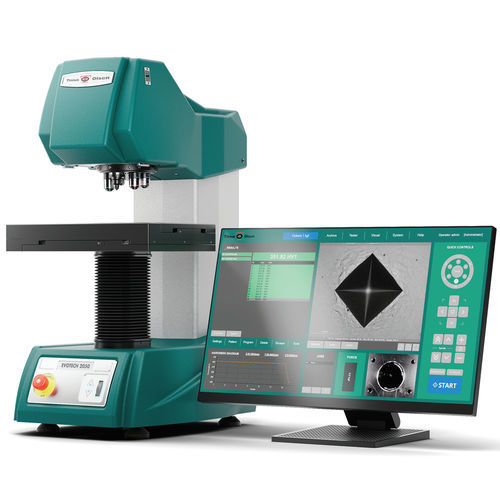

Knoop/Vickers indentation hardness tester Evotech 2050

micro Vickersbenchtopfor automobiles

The model Evotech 2050 Micro-Vickers, Vickers Hardness testing machines are a new generation that use a unique, electronically controlled, closed loop system and advanced force sensor technology to achieve absolute accuracy, reliability and repeatability, on each of the forces used for a test. The innovative Horizon software allows file storing, test program setting and storing, image zoom, auto focus, limit settings, conversions to other hardness scales, system setup and (remote) control, and pattern testing (CHD/Nht/Rht) to ensure high reproducibility of test results and limit operator error and interpretatios. Features and Benefits Multi load cell, closed loop, force control Load range 0.1gf-62.5kgf (0.001-613N)* Meets or exceeds ISO, ASTM and JIS standards Advanced measurement options; single, serial measurements, 2 high definition camera systems 6 position turret, 2 indenter positions (optional), 4 LWD objective positions of which 2 installed 11 Megapixel, Full HD+, integrated TTL camera system Z-axis with ball bearing spindle (standard) Anti-collision system for objectives and indenters High power LED vertical illuminator with filter position Industrial 27” touchscreen, option for 27’’ or 2 x 24” screens or projector
