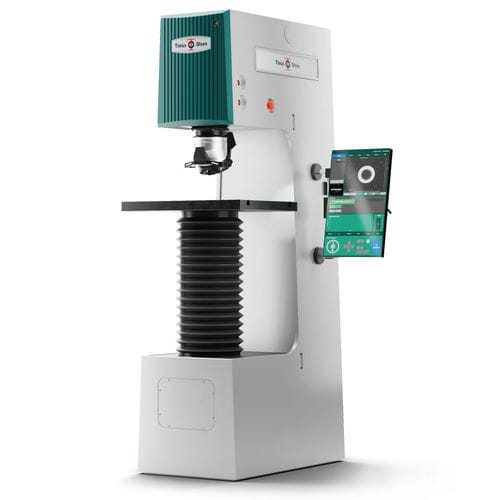

Brinell indentation hardness tester Evotech 705*

RockwellVickersuniversal

The model Evotech 705* is a heavy duty, rock solid C-frame with supreme rigidity. The closed loop system based on a load cell and Rockwell, Vickers, Knoop, Brinell, Ball indentation, HVT and HBT scales are part of testing capabilities. The test force ranges from 200gf to 3000kgf and test cycles can be automatic or manual. With motorized Z axis, descending test head capable of workpiece detection and motorized 8 position turret, it is one of the most loaded technological Hardness tester. 15” industrial touch screen and PC based Horizon software added advantage for this equipment. Features and Benefits Load cell, closed loop, force feedback system Load range 200gf-3000kgf (2N-30kN) Meets or exceeds ISO, ASTM and JIS standards Z-axis with ball bearing spindle Descending test head with automatic workpiece detection 3 indenter positions, 3 LWD objectives installed (included) High definition optical system for images of 0.7x to 1000x magnification PC based Horizon hardness testing firmware and database file system, standard Large, adjustable 15” industrial touch screen Automatic or manual focus, manual or fully automatic indent measurement, standard Testing procedure and results storage on embedded hard drive LAN, WLAN, USB-2, RS232, printer and DVI connectivity, standard On board built-in driver for (optional) motorized XY stage, standard Free definable test patterns case depth, traverse, free style, etc, optional Raise and lower up to 800kg specimen (standard)
