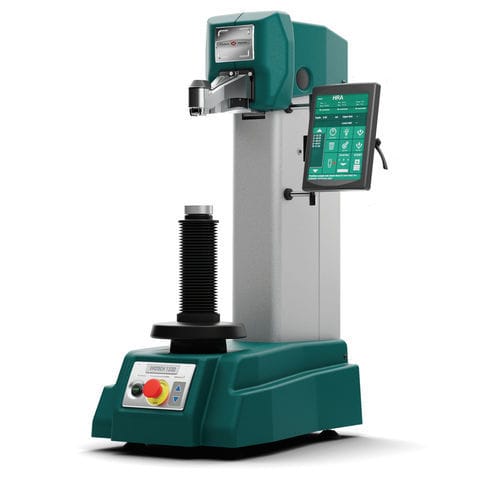

Rockwell indentation hardness tester Evotech 1330

Brinellbenchtopfor automobiles

The model Evotech 1330 is a new generation of hardness testing instrument with protruding nose design. This long nose design allows you to reach as far as 150mm inside a bore or just on flat material similar to any other Rockwell hardness tester. A twin scale Rockwell machine that also provides Brinell testing. Easy to use, excellent workpiece overview. Test forces range from 1-187.5kgf, which means that even this basic model is equipped with Rockwell, Superficial Rockwell and Brinell load settings. System control is managed via a simple-to-use 8.5” full color industrial touchscreen. The touchscreen will also display results and statistics. Features and benefits Load cell, closed loop, force feedback system 150mm protruding nose, 200mm throat depth Load range 1-187.5kgf (9.8-1839N) Meets or exceeds ISO, ASTM and JIS standards Force(load) measurement at the indenter position Absolute linear applied test force, no lever construction Hysteresis free mechanical system 400mm workpiece height Motorized spindle for fully automatic clamping & testing (optional) Power LED light in nose for bright sample illumination Removable workpiece clamp, with interchangeable inserts, clamps/holds sample firmly in position (optional) Integrated high performance system controller, mSSD hard drive storage Industrial 8.5” touch screen LAN, W-LAN, USB connectivity Wireless keyboard & mouse ABS cover included, protecting machine base against falling objects Optional palm scanner for automatic Brinell measurement
