Brinell indentation hardness tester Evotech 708*

RockwellVickersuniversal

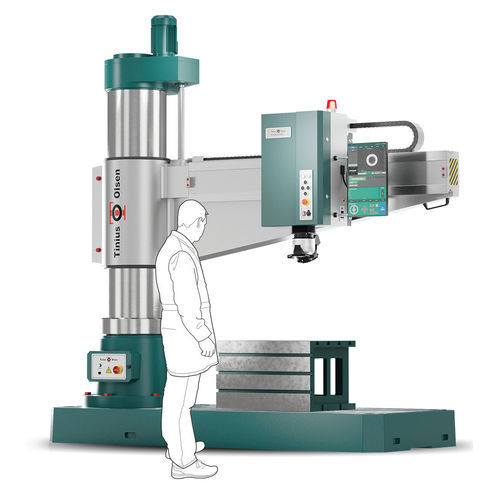

The model Evotech 708* is a large radial frame that allows testing either on the machine base or beside it. The heavy-duty test head easily pivots, ensuring seamless positioning of workpieces without any hindrance. Forget the hassle of manual workpiece adjustments. Use a crane or forklift truck to effortlessly position your parts. With its unique dual Z-axis, this tester provides an impressive range of test scales. From Vickers 500gf to Brinell 3000kgf, this tester can determine the hardness of objects ranging from small to remarkably large. The standard delivered removable cast iron block stage makes it convenient to test smaller parts at an ergonomic working height, ensuring precision and ease of use. Features and Benefits Multi load cell, closed loop system, force feedback system Load range 200gf-3000kgf (2N-30kN) Meets or exceeds ISO, ASTM and JIS standards Z-axis with ball bearing spindle Descending test head with automatic workpiece detection 9 position turret with visual LED process indicators 18MP measurement camera+18MP overview camera PC based Horizon hardness testing firmware and database file system, standard Large, adjustable 22” industrial touch screen Automatic or manual focus, manual or fully automatic indent measurement, standard Testing procedure and results storage on embedded hard drive LAN, WLAN, USB-2, RS232, printer and DVI connectivity, standard On board built-in driver for (optional) motorized XY stage, standard Free definable test patterns case depth, traverse, free style, etc, optional
