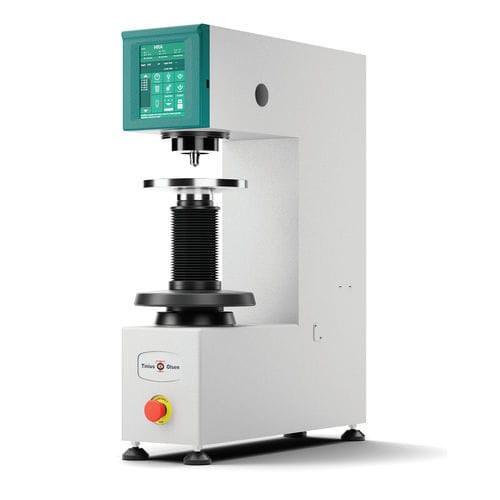

Brinell indentation hardness tester Evotech 4010

benchtopfor automobilesfor aluminum

The model Evotech 4010 is a quality Brinell testing system in a robust, rigid frame. It integrates a precision optical system with high quality objectives and a digital display and offers conversion to other hardness scales and online statistics, as well as USB, LAN, W-LAN, RS232 data output. The system controls are managed via a simple-to-use 6.5” full color industrial touch screen, which will also display results and statistics. Features and Benefits Load cell, closed loop, force control Load range 62.5-3000kgf (613N-29kN) Meets or exceeds ISO, ASTM and JIS standards 6.5” full-color industrial touch screen Simultaneous conversion to Rockwell, Vickers and Leeb rebound testing Brinell digital scanner (CCD camera) for automatic indent measurement Horizon high performance PC-based camera indent measuring system. Automatic measurement of the indent on the industrial touch screen. Archive file, handle images and data on the tester or your network
