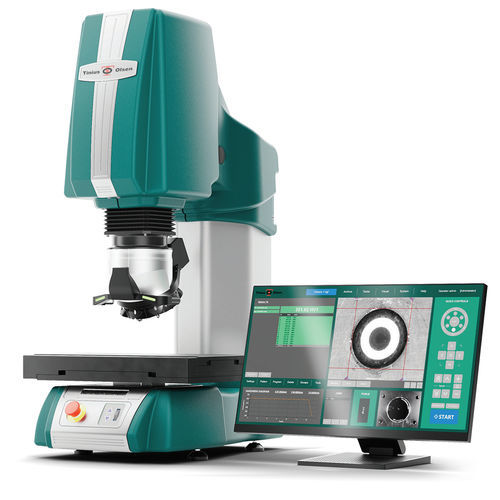

Brinell indentation hardness tester Evotech 701*

RockwellVickersuniversal

The model Evotech 701*, Rockwell, Vickers, Knoop and Brinell hardness tester provides exceptional performance, designed to match the most demanding user tasks. This tester contains a revolutionary force application range and renewed optical system. The all new 9 position turret accommodates a wide range of indenters, indenter actuators with load cells, objectives, a cross-laser positioning system and a load cell supported touch probe. It also provides a base to the 18 megapixel full color measurement camera and 18 megapixel full color overview camera with variable field of view, motorized zoom and auto focus system. Features and Benefits Multi load cell, closed loop, force control Load range 10gf-3000kgf (0.1N-30kN)* Meets or exceeds ISO, ASTM and JIS standards 9 position tool changer (turret) with visual LED process indicators 18 megapixel full color measurement camera, bright white LED TTL illumination 18 megapixel full color sample image & stage overview camera Automatic workpiece height detection Top quality ABS replaceable body parts, no frame damage from falling objects Horizon high performance PC-based camera indent measuring system. Automatic measurement of the indent on the industrial touch screen. Archive file, handle images and data on the tester or your network
