Brinell indentation hardness tester Evotech 4030

benchtopfor automobilesfor aluminum

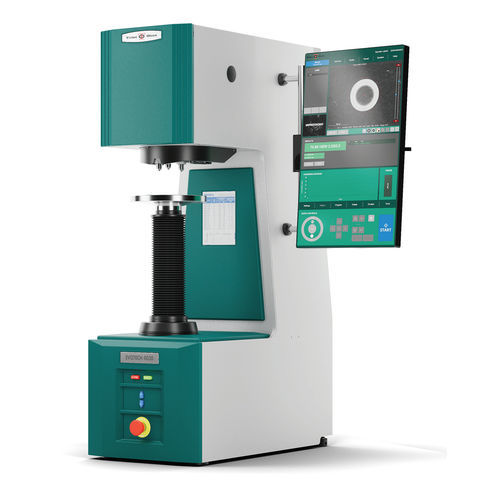

The model Evotech 4030 is a fully automatic Brinell testing system in a robust, rigid frame. It is equipped with a 6 position motorized turret, with 3 indenter positions, a laser positioning system and 2 objectives with ring lights and offers conversion to other Hardness scales and online statistics, as well as USB, LAN, W-LAN, RS232 data output. The system controls are managed via a simple-to-use 15” full color industrial touch screen, which will also display results and statistics. Features and Benefits Load cell, closed loop, force control Load range 31.25-3000kgf (306N-29kN) Meets or exceeds ISO, ASTM and JIS standards 15” full-color industrial touch screen CCD camera Simultaneous conversion to Rockwell, Vickers and Leeb rebound testing 6 position motorized turret; 3 indenters, 2 Brinell objectives with ring lights and 1 laser positioning system Horizon high performance PC-based camera indent measuring system. Automatic measurement of the indent on the industrial touch screen. Archive file, handle images and data on the tester or your network
