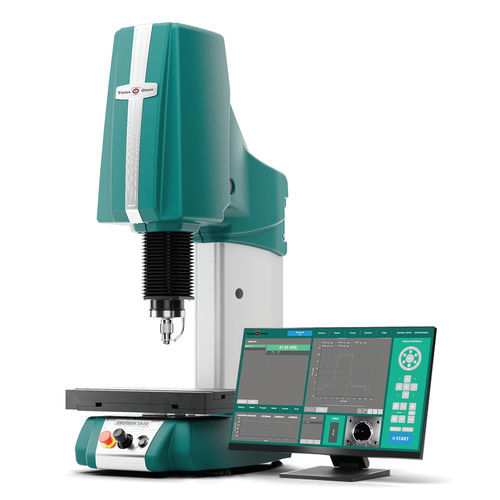

Rockwell indentation hardness tester Evotech 1620

Brinellbenchtopfor automobiles

The model Evotech 1620 features Load cell, force feedback, closed loop system, fully automatic, servo motor driven. The test forces can range from 3kgf to 150kgf and can perform Rockwell, Superficial Rockwell and Brinell Hardness tests. This fully integrated windows controller, SSD hard disk, windows 10 operated system also includes automatic measurement, 15” full color touch screen and a motorized descending test head with collision detection. It can accommodate workpiece of 345 x 220mm. Features and benefits Load cell, closed loop, ball bearing linear force actuator Load range 3-150kgf (29.4-1471N) Meets or exceeds ISO, ASTM and JIS standards Descending test head with collision detection system Built-in laser positioning system (optional) Full color industrial 15” touch screen interface Adjustable workpiece illumination Manual, motorized stages Large workpiece accommodation: 345x220mm (HxD)
