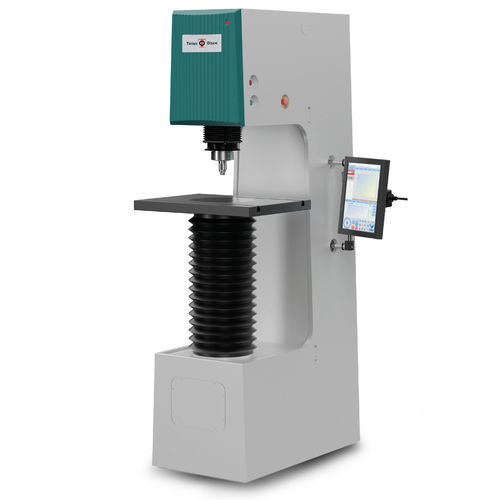

Rockwell indentation hardness tester Evotech 4060

Brinellbenchtopfor aluminum

The model Evotech 4060 is a rigid, rock solid C-frame with supreme rigidity. The closed loop system based on a load cell and Rockwell, superficial Rockwell, Brinell, Ball indentation, HVT and HBT scales are part of testing capabilities. The test force ranges from 3kgf to 3,000kgf and test cycles can be automatic or manual. With motorized Z axis and descending test head capable of workpiece detection, it is one of the most loaded technological Hardness tester. 15” industrial touch screen and PC based Horizon software added advantage for this equipment. Features and Benefits Load cell, closed loop, force feedback system Load range 3-3,000kgf (29N-29kN) Meets or exceeds ISO, ASTM and JIS standards Motorized Z axis (standard) Descending test head with automatic workpiece detection PC based Horizon hardness testing firmware and database file system, standard Large, adjustable 15” industrial touch screen Brinell option: optical – high resolution palm scanner with on screen auto read and fine tune adjustments of indentation Testing procedure and results storage on internal hard drive LAN, WLAN, USB-2, RS232, printer and DVI connectivity, standard On board built-in driver for (optional) motorized XY stage, standard Free definable test patterns case depth, traverse, free style, etc, optional Raise and lower up to 800kg specimen (standard)
