SiC power module THWT30F10025C8EUR

ACDC

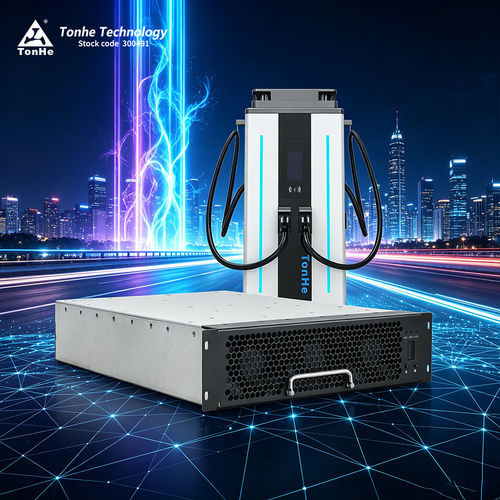

THWT30F10025C8EUR is a power module developed by Tonhe Electronics for charging pile, which meets UL standard, high efficiency and high power density. It supports 432Vac ~ 528Vac three-phase four-wire system (three-phase +PE) input, the maximum power is 30KW, and the default constant output power range is 250Vdc ~ 1000Vdc. The monitoring unit/control unit of the charging system CAN communicate with the charging module through the CAN bus. Based on the communication, the functions of working parameter setting, operating parameter collection and working state control of the charging module can be realized. Product Advantages Wide output constant power range: 280-1000VDC Ultra-low standby power consumption: <10W Ultra-low total harmonic distortion: ≤5% Ultra-wide operating temperature: -30℃~+75℃ High Conversion Efficiency: peak efficiency ≥ 96%
