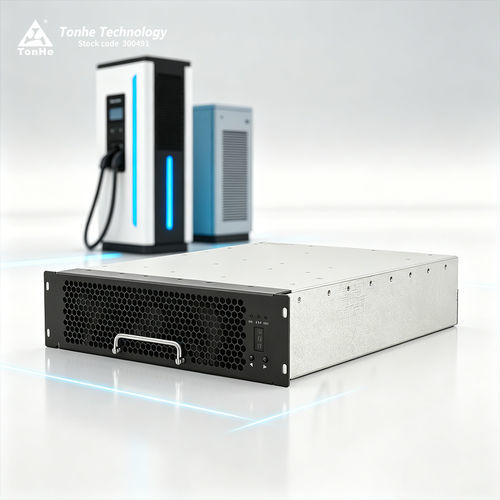

EV charger module TH30F10025C7E-WT

DC

Product Brief
TH30F10025C7E-WT is an AC/DC EV rectifier module designed for charging stations. It provides a rated output power of 30 kW, supports three-phase four-wire input (three-phase + PE) and a wide constant-power output range of 250–1000 VDC. The unit uses intelligent air (fan) cooling and supports multiple operating modes. CAN communication enables parameter configuration and control with the station controller and interaction with vehicle BMS.

Product Introduction
Designed for fast charging applications, the rectifier accepts 270–490 VAC line voltage (three-phase) and delivers constant 30 kW within the 250–1000 VDC output window. The device includes selectable normal and silent fan modes, CAN-based control (125 kbps typical), and prevents charging without a compatible vehicle BMS.

Product Advantages

• Wide constant-power output range: 250–1000 VDC
• Very low standby consumption: <10 W
• Low total harmonic distortion (THD): ≤5%
• Wide operating temperature range: -30℃ to 75℃
• High peak conversion efficiency: ≥96%

Parametric Performance (summary)
Model: TH30F10025C7E-WT

AC Input:

• Rated voltage: 380 VAC (three-phase); operating range 270–490 VAC
• Frequency: 50±5 Hz
• Input power factor: ≥0.99
• Over/under voltage protection thresholds: 490±10 VAC / 270±10 VAC

DC Output:

• Rated output power: 30 kW
• Output voltage range: 50–1000 VDC (constant power 250–1000 VDC)
• Output current range: 0.5–120 A
• Peak efficiency: ≥96%
• Soft start time: 3–8 s
• Protection: short‑circuit self-rollback; voltage regulation accuracy ≤±0.5%; current regulation ≤±1%; current sharing imbalance ≤±5%

Operation Environment

• Working temperature: -30℃ to 75℃
• Relative humidity: ≤95% (no condensation)
• Altitude: ≤2000 m (derating above 2000 m)

Product Features

• Cooling method: fan cooling with selectable modes
• Standby power: <10 W
• Communication: CAN (typical series baud rate 125 kbps, 5 V level)
• Address/setting: digital display with key operation
• Module dimensions: 437.5 × 300 × 84 mm (L × W × H)
• Weight: ≤15 kg
• MTBF: 500,000 hours

Production & Test Capabilities
Manufacturing follows ISO9001 and IATF16949 processes with automated SMT and assembly lines. In-house testing includes semi-anechoic EMC chamber (3 m), temperature/humidity chambers, high-performance power analyzers and DC/AC test loads to validate charger systems.

Certificates & Packaging
Quality management certifications: ISO9001, IATF16949. Product-level certifications typically referenced include CE/TUV. Packaging options: international express for small orders and sea/air container shipments for bulk orders.

FAQ Highlights

• Communication protocol: CAN (typical baud rate 125 kbps, 5 V level)
• Potting/encapsulation: supported for series models
• Installation orientation: horizontal, side-standing or inverted (front-panel customization possible for inverted mounting)
• Lead time: sample/small orders short; large or customized orders require production coordination
• Payment terms: standard TT in advance; negotiable for long-term cooperation
• Warranty: standard 12 months from shipment receipt

Technical specifications

• Model: TH30F10025C7E-WT
• Brand: TonHe
• AC input: 270–490 VAC, 3-phase, 50±5 Hz, PF ≥0.99
• DC output: 30 kW, 50–1000 VDC, 0.5–120 A
• Constant power range: 250–1000 VDC at 30 kW
• Peak efficiency: ≥96%
• THD: ≤5%
• Standby power: <10 W
• Operating temperature: -30℃ to 75℃
• Cooling: fan cooling
• Dimensions: 437.5 × 300 × 84 mm
• Weight: ≤15 kg
• MTBF: 500,000 hours
