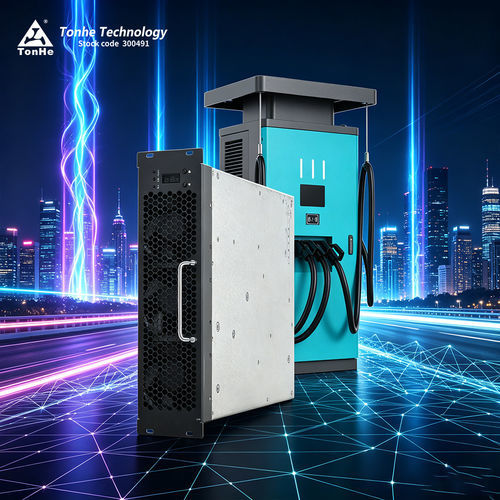

SiC power module THWT30F10030C9EUR

ACDC

Product overview
THWT30F10030C9EUR is a 30 kW DC fast charging power module by Tonhe designed for commercial charging stations. It is UL certified and optimized for high power density, wide input range and constant-power DC output behavior suitable for industrial EV charger assemblies.

Key advantages

• Constant output power mode across a wide DC voltage span (default 300–1000 VDC; constant behavior noted from 250 VDC)
• High peak conversion efficiency (documented ≥96%, sections note up to ≥97.5%)
• Very low standby consumption: <10 W
• Low total harmonic distortion (THD ≤5%) and high input power factor (≥0.99)
• Wide operating temperature capability (specified ranges include -40 ℃ to +75 ℃ / -30 ℃ to +70 ℃ depending on product line)

Technical specifications (summary)

• Model: THWT30F10030C9EUR
• Brand: Tonhe
• AC input: rated 480 VAC three-phase (no neutral), operating range 432–528 VAC, 60 Hz
• Input protections: overvoltage 531–543 VAC, undervoltage 323–335 VAC
• DC output power: rated 30 kW
• Output voltage range: 200–1000 VDC (default constant power 300–1000 VDC; constant 30 kW noted for 250–1000 VDC)
• Output current range: 0.5–120 A
• Peak efficiency: ≥96% (sections indicate up to ≥97.5%)
• Soft start time: ≤3 s; short-circuit: self-rollback protection
• Voltage regulation accuracy: ≤±0.5%; current regulation accuracy: ≤±1%
• THD: ≤5%; current sharing imbalance: ≤±5%

Mechanical & environmental

• Dimensions (without handle): 437.5 × 300 × 84 mm (L × W × H)
• Weight: ≤20 kg
• Cooling: fan cooling
• Standby power consumption: <10 W
• MTBF: 500,000 hours
• Operating temperature: ranges indicated -40 ℃ ~ +75 ℃ or -30 ℃ ~ +70 ℃ depending on spec line
• Relative humidity: ≤95% (non-condensing); altitude: ≤2000 m (derating above 2000 m)

Communication & operation

• Interface: CAN bus for monitoring, parameter setting and state control
• CAN details: typical module CAN baud rate noted as 125 kbs and CAN voltage level 5 V
• Addressing and local operation: digital screen with key operation
• Installation: supports horizontal, side-standing or inverted mounting; front panel customizations available

Manufacturing & test center
Tonhe Technology operates ISO9001 and IATF16949 certified production lines including SMT, soldering, aging and automatic assembly processes supporting mass production. A CNAS-recognized EMC laboratory and comprehensive test equipment (semi-anechoic chamber, power analyzers, climatic chambers, DC loads, transient immunity testers) support functional and EMC validation.

Certifications & packaging
Product and company documentation reference UL, CE, TUV and quality system certifications. Packaging is adapted for samples (express) and full-container sea/air shipments; lead times vary by quantity (examples: sample quantities ~7 days; larger orders require coordination).

FAQ (selected)

• Q: Which communication protocol is used? A: CAN; module CAN baud rate typically 125 kbs, CAN level 5 V.
• Q: Is potting/glue filling supported? A: Yes, series supports glue filling.
• Q: What mounting orientations are possible? A: Horizontal, side-standing or upside-down; some front-panel customizations available.
• Q: Typical delivery time? A: Sample availability and production lead times depend on order size; small sample orders often ~7 days.
• Q: Warranty? A: Standard warranty typically 12 months after shipment, with online and on-site support options per contract.
