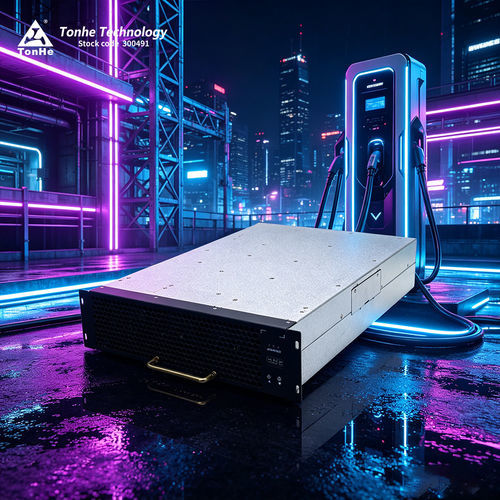

EV charger module TH30F10030C9E-WT

DC

Overview
TH30F10030C9E-WT is a low-noise, high-efficiency, high-power-density AC/DC module developed for EV charging stations. It accepts three-phase four-wire input and provides stable DC output up to 30 kW. Communication and remote control are supported via CAN bus.

Main functions

• Rated output power: 30 kW.
• Ultra-wide constant power range: supports constant 30 kW output across a wide DC voltage window.
• CAN bus communication for parameter setting, operating data collection and status control.

Technical table (key parameters)

• Model: TH30F10030C9E-WT
• AC input voltage: rated 380 VAC (three-phase, no neutral), operating range 285–475 VAC
• Input frequency: 50 ±5 Hz
• Input power factor: ≥0.99
• Input overvoltage protection: 487 ±10 VAC
• Input undervoltage protection: 270 ±10 VAC
• DC output rated power: 30 kW
• DC output voltage range: 50–1000 VDC
• DC output current range: 0.5–100 A
• Constant power range: 300–1000 VDC (constant 30 kW)
• Peak efficiency: ≥96.5%
• Soft start time: 3–8 s
• Short-circuit protection: self-rollback protection
• Voltage regulation accuracy: ≤±0.5%
• Current regulation accuracy: ≤±1%
• Total harmonic distortion (THD): ≤5%
• Current sharing imbalance: ≤±5%
• Operating temperature: -30 ℃ to +75 ℃
• Relative humidity: ≤95% (non-condensing)
• Altitude: ≤2000 m (derating above 2000 m)
• Cooling: fan cooling
• Standby power consumption: <6 W
• Communication protocol: CAN (125 kbps, 5 V level)
• Address setting: digital display and keys
• Dimensions (L×W×H, without handle): 437.5 × 300 × 84 mm
• Weight: ≤16 kg
• MTBF: 500,000 hours

Product description
TH30F10030C9E-WT is optimized for EV charging applications where low noise, high power density and wide operating voltage range are required. The module maintains stable DC output up to 30 kW over a broad DC voltage window and is designed for operation in a wide ambient temperature range without derating within specified limits. CAN bus control enables remote configuration, monitoring and integration into charging management systems.

Technical specifications

• Model: TH30F10030C9E-WT
• Brand: Tonhe
• Rated DC output power: 30 kW
• DC output voltage: 50–1000 VDC
• DC output current: 0.5–100 A
• Constant power range: 300–1000 VDC (30 kW)
• Peak efficiency: ≥96.5%
• Voltage regulation: ≤±0.5%
• Current regulation: ≤±1%
• THD: ≤5%
• Cooling: fan
• Standby power: <6 W
• Communication: CAN (125 kbps, 5 V)
• Dimensions: 437.5 × 300 × 84 mm (without handle)
• Weight: ≤16 kg
• Operating temperature: -30 ℃ to +75 ℃
• MTBF: 500,000 hours
