SiC power module TH30F10025C7E-WT

ACDC

Product Brief

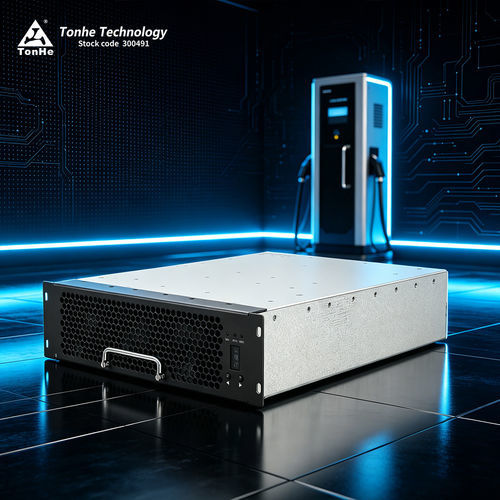

TH30F10025C7E-WT is an AC/DC EV rectifier module by TonHe designed for charging stations. It delivers rated output power of 30 kW with a wide constant-power output range (250–1000 Vdc). The unit supports three-phase four-wire input, intelligent fan cooling (normal/silent modes) and CAN communication for integration with the station controller and vehicle BMS.

Product Introduction
The TH30F10025C7E-WT provides high power density and high conversion efficiency for commercial EV charging applications. It interfaces with vehicle BMS to manage charging; charging is inhibited without proper BMS communication to ensure battery safety and compatibility.

Product Advantages

• Wide constant-power output: 250–1000 Vdc (constant 30 kW in this range)
• Ultra-low standby consumption: <10 W
• Low total harmonic distortion: THD ≤5%
• Wide operating temperature range: -30℃ to 75℃
• High peak conversion efficiency: ≥96%

Parametric Performance
Model No. TH30F10025C7E-WT

AC Input
Rated voltage: 380 Vac, three-phase (three-phase + PE), operating range 270–490 Vac
Input frequency: 50±5 Hz
Input power factor: ≥0.99
Input overvoltage protection: 490±10 Vac
Input undervoltage protection: 270±10 Vac

DC Output
Rated output power: 30 kW
Output voltage range: 50–1000 Vdc
Output current range: 0.5–120 A
Output constant power range: constant 30 kW for 250–1000 Vdc
Peak efficiency: ≥96%
Soft start time: 3–8 s
Short-circuit protection: self-rollback protection
Voltage regulation accuracy: ≤±0.5%
Current regulation accuracy: ≤±1%
Current sharing imbalance: ≤±5%
THD: ≤5%

Operation Environment
Working temperature: -30℃ to 75℃
Relative humidity: ≤95% (non-condensing)
Altitude: ≤2000 m (derating above 2000 m)

Product Features
Cooling method: fan cooling (normal / silent modes)
Standby power consumption: <10 W
Communication protocol: CAN (125 kb/s, 5 V level)
Address setting: digital display and keypad
Module dimensions: 437.5 × 300 × 84 mm (L × W × H)
Weight: ≤15 kg
MTBF: 500,000 hours

Production & Test Center Summary
TonHe Technology operates SMT lines, automated soldering and conformal coating, aging and inspection lines, and an accredited EMC laboratory. Test equipment includes a semi-anechoic 3 m chamber, programmable loads, power analyzers and environmental chambers to support mass production and full compliance testing.

Technical Specifications

• Model: TH30F10025C7E-WT
• Brand: TonHe
• Rated output power: 30 kW
• Output voltage range: 50–1000 Vdc (constant 30 kW at 250–1000 Vdc)
• Output current range: 0.5–120 A
• Peak efficiency: ≥96%
• Input voltage: rated 380 Vac, three-phase; operating range 270–490 Vac
• Input frequency: 50±5 Hz
• Input power factor: ≥0.99
• THD: ≤5%
• Standby power: <10 W
• Communication: CAN (125 kb/s, 5 V)
• Cooling: fan cooling
• Operating temperature: -30℃ to 75℃
• Dimensions: 437.5 × 300 × 84 mm
• Weight: ≤15 kg
• MTBF: 500,000 hours
