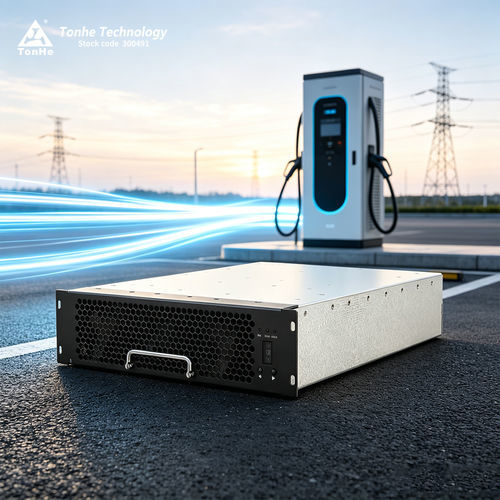

Digital converter module TH30F10025C7E-WT

voltage/currentCAN Busthree-phase

Product Overview
TH30F10025C7E-WT is an AC/DC rectifier module designed by TonHe for electric vehicle charging stations. It delivers a rated output power of 30kW and supports a wide constant-power output range of 250–1000VDC. The unit accepts three-phase four-wire input (270–490VAC, rated 380VAC) and uses intelligent air cooling with selectable normal and silent modes. Communication with the main controller is via CAN bus for parameter configuration and status control. This rectifier cooperates with vehicle BMS systems to perform charging; charging is disabled without a compatible BMS.

Product Advantages

• Wide constant-power output range: 250–1000VDC
• Ultra-low standby power consumption: <10W
• Low total harmonic distortion (THD): ≤5%
• Wide operating temperature range: -40℃ to 75℃
• High peak conversion efficiency: ≥96%

AC Input
Input Voltage: 270–490VAC (rated 380VAC, three-phase four-wire)
Input Frequency: 50±5Hz
Input Power Factor: ≥0.99
Overvoltage Protection: 490±10VAC
Undervoltage Protection: 270±10VAC

DC Output
Rated Output Power: 30kW
Output Voltage Range: 50–1000VDC
Output Current Range: 0.5–120A
Constant Power Range: 250–1000VDC at 30kW
Peak Efficiency: ≥96%
Soft Start Time: 3–8s
Short-Circuit Protection: Auto rollback
Voltage Regulation Accuracy: ≤±0.5%
THD: ≤5%
Current Regulation Accuracy: ≤±1%
Current Sharing Imbalance: ≤±5%

Operation Environment
Operating Temperature: -30℃ to 75℃
Relative Humidity: ≤95% (non-condensing)
Altitude: ≤2000m (derating above 2000m)

Product Features
Cooling Method: Fan cooling
Standby Power Consumption: <10W
Communication Protocol: CAN
Address Setting: Digital display and keys
Dimensions (L×W×H): 437.5×300×84mm
Weight: ≤15kg
MTBF: 500,000 hours

Technical Specifications

• Model: TH30F10025C7E-WT
• Brand: TonHe
• Rated output power: 30kW
• AC input voltage: 270–490VAC (rated 380VAC)
• Input frequency: 50±5Hz
• DC output voltage range: 50–1000VDC
• Output current range: 0.5–120A
• Output constant power range: 250–1000VDC (constant 30kW)
• Peak efficiency: ≥96%
• Total harmonic distortion (THD): ≤5%
• Voltage regulation accuracy: ≤±0.5%
• Current regulation accuracy: ≤±1%
• Current sharing imbalance: ≤±5%
• Operating temperature range: -30℃ to 75℃
• Relative humidity: up to 95% (no condensation)
• Altitude: ≤2000m (derating above)
• Cooling: Fan cooling
• Communication: CAN
• Dimensions (L×W×H): 437.5×300×84mm
• Weight: ≤15kg
• MTBF: 500,000 hours
