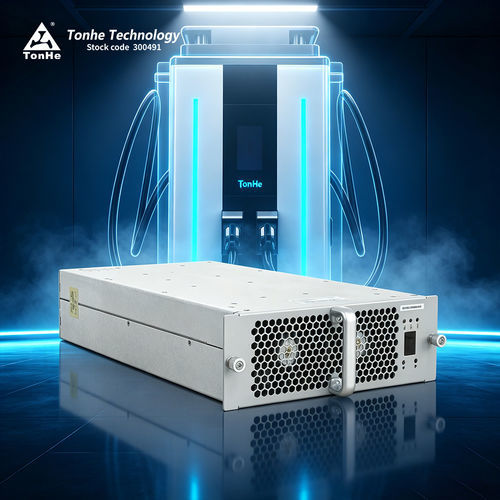

Digital power module TH30F10030C8E-WT

for charging electric vehiclesACDCAC

Product overview
Tonhe TH30F10030C8E-WT is a high-efficiency AC/DC module rectifier designed for EV charging stations. It accepts three-phase four-wire input (three-phase + PE), supports 285–475 VAC input range, and has a rated DC output power of 30 kW. The module communicates with the system controller via CAN bus for configuration, monitoring and control.

Key advantages

• Wide constant-power output range: 300–1000 VDC
• Ultra-low standby consumption: <10 W
• Low total harmonic distortion (THD): ≤5%
• Wide operating temperature: -40 °C to +75 °C
• High conversion efficiency: peak ≥96%

Parametric performance (summary)
Model: TH30F10030C8E-WT
Brand: Tonhe
AC input rated voltage: 380 VAC three-phase (operating 285–475 VAC)
AC input frequency: 50 ± 5 Hz
Input power factor: ≥0.99
Input overvoltage protection: 487 ± 10 VAC
Input undervoltage protection: 270 ± 10 VAC
DC rated output power: 30 kW
DC output voltage range: 50–1000 VDC
DC output current range: 0.5–100 A
Constant-power note: when output voltage is 300–1000 VDC, constant 20 kW is maintained
Peak efficiency: ≥96%
Soft-start time: 3–8 s
Short-circuit protection: self-rollback
Voltage regulation accuracy: ≤±0.5%
THD: ≤5%
Current regulation accuracy: ≤±1%
Current sharing imbalance: ≤±5%

Operating environment
Operating temperature: -40 °C to +75 °C
Relative humidity: ≤95% non-condensing
Altitude: ≤2000 m (derate above 2000 m)

Product features

• Cooling: fan cooling
• Standby power: <10 W
• Communication: CAN bus (125 kb/s)
• Address setting: digital display with key operation
• Dimensions (L×W×H): 460 × 218 × 84 mm
• Weight: ≤13 kg
• MTBF: 500,000 hours

Production center
Manufacturing follows ISO9001 and IATF16949 automotive quality processes, with SMT lines, solder paste printing/inspection, wave soldering, conformal coating and aging tests. Annual module output exceeds 500,000 units after full production flow.

Test center
Test capabilities include a semi-anechoic 3 m EMC chamber, Chroma electronic loads, AC sources, Yokogawa WT1800 power analyzers, environmental chambers and AXOS8 transient test systems to support electrical, EMC, temperature and reliability testing.

Certificates & applications
Referenced certifications: CE, TUV and company ISO/IATF certificates. Suitable for residential EV chargers, public charging points and fast chargers (Type 2); supports cars, SUVs, vans and pickup trucks.

Packaging & shipping
Packaging varies by order size: small orders via couriers (FedEx, DHL, UPS), large shipments by sea or air in containers. Common commercial term: FOB Shijiazhuang.

FAQ (selected technical answers)

• Communication protocol: CAN, baud rate 125 kb/s, CAN voltage level 5 V.
• Potting: all series support glue filling.
• Installation: horizontal, side-standing or inverted. Inverted installation can be supplied with a front panel without handle as customization.
• Warranty: standard 12 months from receipt of shipment.
• OEM/ODM: custom nameplate, color and shape options available.

Technical specifications

• Model: TH30F10030C8E-WT
• Brand: Tonhe
• HS code: 8504409999
• Rated DC output power: 30 kW
• DC output voltage range: 50–1000 VDC
• DC output current range: 0.5–100 A
• Constant power note: constant 20 kW at 300–1000 VDC
• Peak efficiency: ≥96%
• Standby power: <10 W
• THD: ≤5%
• Voltage regulation accuracy: ≤±0.5%
• Current regulation accuracy: ≤±1%
• Current sharing imbalance: ≤±5%
• AC input rated voltage: 380 VAC three-phase (operating 285–475 VAC)
• Input frequency: 50 ± 5 Hz
• Input power factor: ≥0.99
• Input overvoltage protection: 487 ± 10 VAC
• Input undervoltage protection: 270 ± 10 VAC
• Soft-start time: 3–8 s
• Short-circuit protection: self-rollback
• Cooling: fan cooling
• Communication: CAN bus (125 kb/s)
• Address setting: digital display and key operation
• Dimensions (L×W×H): 460 × 218 × 84 mm
• Weight: ≤13 kg
• Operating temperature: -40 °C to +75 °C
• Relative humidity: ≤95% non-condensing
• Altitude: ≤2000 m (derate above)
• MTBF: 500,000 hours
