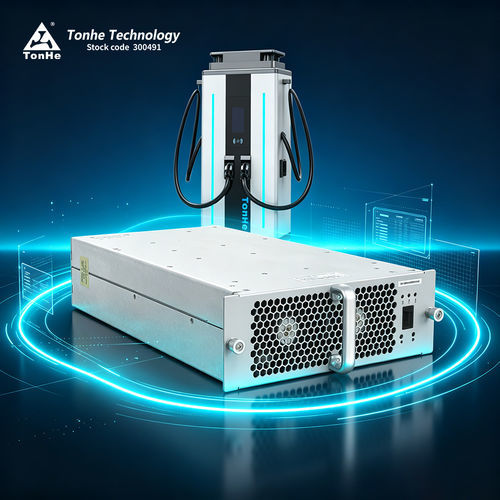

Electric vehicle charger module TH30F10030C8E-WT

EVDC

Product overview
TH30F10030C8E-WT is an AC/DC rectifier module designed for EV charging stations. It supports three-phase four-wire input (three-phase + PE) with an operating input range of 285–475 VAC and delivers up to 30 kW rated output. The module communicates with the main controller via CAN bus for parameter setting, telemetry and operational control.

Advantages

• Wide constant-power output range: 300–1000 VDC
• Ultra-low standby consumption: <10 W
• Low total harmonic distortion (THD): ≤5%
• Wide operating temperature: -40 ℃ to +75 ℃
• High conversion efficiency: peak ≥96%

Parametric performance (summary)
Model: TH30F10030C8E-WT

AC input:
Rated voltage: 380 VAC three-phase; operating range 285–475 VAC
Frequency: 50 ±5 Hz
Power factor: ≥0.99
Input overvoltage protection: 487 ±10 VAC
Input undervoltage protection: 270 ±10 VAC

DC output:
Rated output power: 30 kW
Output voltage range: 50–1000 VDC
Output current range: 0.5–100 A
Constant-power range: when Vout is 300–1000 VDC, constant 20 kW output (per specification)
Peak efficiency: ≥96%
Soft-start time: 3–8 s
Short-circuit protection: self-recovery/rollback protection
Voltage regulation accuracy: ≤±0.5%
THD: ≤5%
Current regulation accuracy: ≤±1%
Current sharing imbalance: ≤±5%

Operating environment
Operating temperature: -40 ℃ to +75 ℃
Relative humidity: ≤95% (non-condensing)
Altitude: ≤2000 m (derating above 2000 m)

Product features

• Cooling: fan cooling
• Standby power: <10 W
• Communication: CAN bus (typical 125 kb/s, 5 V level)
• Address setting and local interface: digital display and keys
• Dimensions: 460 × 218 × 84 mm (L × W × H)
• Weight: ≤13 kg
• MTBF: 500,000 hours

Production and test center
Manufactured under ISO9001 and IATF16949 processes with automated SMT lines, soldering and inspection equipment. First-class EMC laboratory (CNAS) and comprehensive test systems enable radiated emission, immunity, transient and full charger testing. Annual module output exceeds 500,000 units after full production processes.

FAQ (selected)

• Communication protocol: CAN, typical baud rate 125 kb/s, CAN level 5 V.
• Potting: series supports glue/potting filling.
• Installation: horizontal, side-standing or inverted; inverted installation may require a customized front panel without handle.
• Delivery time: sample/small orders typically ~7 days; larger or customized orders require longer coordination (example up to ~35 days depending on production schedule).
• Payment terms: standard 100% TT in advance; negotiable for long-term cooperation (examples: 50%+50% or 30%+70%).
• Warranty: standard 12 months from receipt.
• After-sales: online and on-site options available per contract.

Technical specifications

• Model: TH30F10030C8E-WT
• Brand: Tonhe
• HS code: 8504409999
• Rated power: 30 kW
• AC input: 285–475 VAC (three-phase), rated 380 VAC
• Frequency: 50 ±5 Hz
• DC output range: 50–1000 VDC
• Output current: 0.5–100 A
• Constant-power range: 300–1000 VDC (constant 20 kW in that range per spec)
• Peak efficiency: ≥96%
• Standby power: <10 W
• THD: ≤5%
• Voltage regulation: ≤±0.5%
• Current regulation: ≤±1%
• Cooling: fan
• Soft-start: 3–8 s
• Dimensions (L×W×H): 460 × 218 × 84 mm
• Weight: ≤13 kg
• Operating temperature: -40 ℃ to +75 ℃
• Relative humidity: ≤95% non-condensing
• Altitude: ≤2000 m (derating above)
• MTBF: 500,000 hours
• Communication: CAN bus (125 kb/s, 5 V level)
