SiC power module TH30F10030C8E-WT

ACDC

Brief Introduction

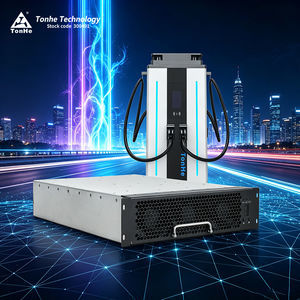

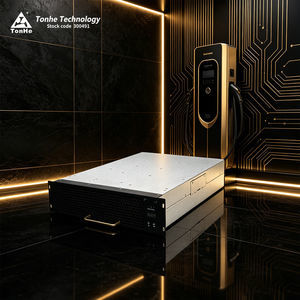

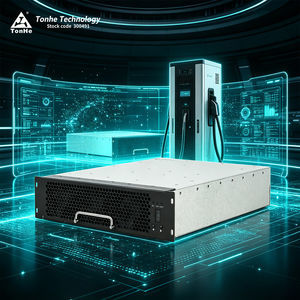

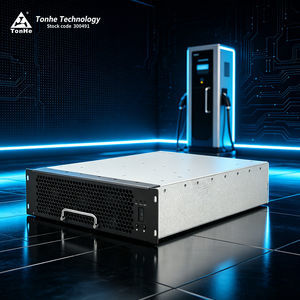

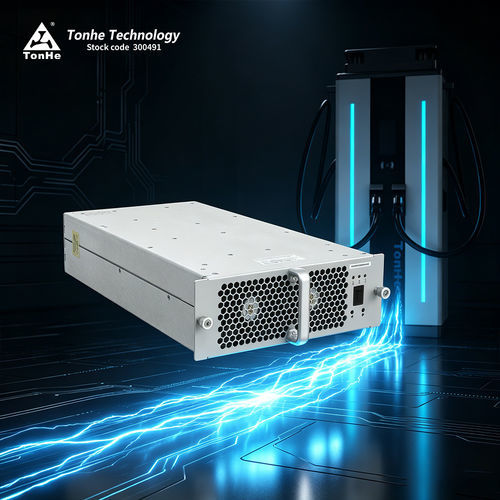

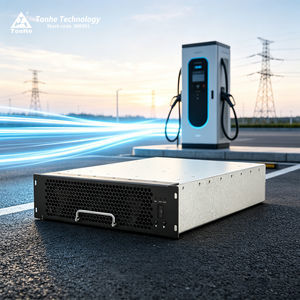

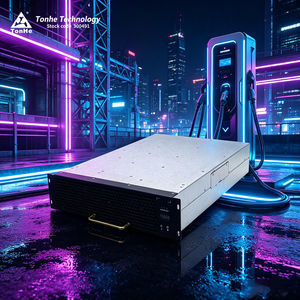

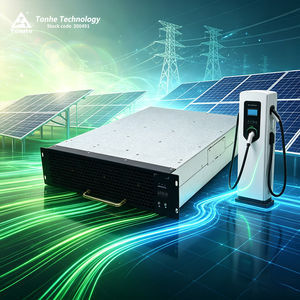

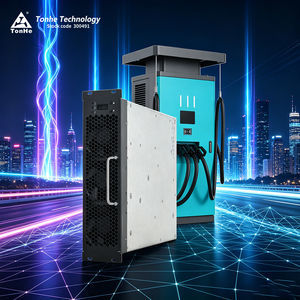

TH30F10030C8E-WT is a high-efficiency, high-power-density AC/DC module designed by Tonhe for EV charging stations. It accepts three-phase four-wire input (3Ø + PE), supports 285VAC–475VAC input range and delivers up to 30kW (constant-power usable range: 300–1000VDC). The module communicates with the main controller via CAN bus for parameter configuration, telemetry and status control.

Advantages

• Wide constant‑power range: 300–1000VDC
• Ultra-low standby power consumption: <10W
• Low total harmonic distortion (THD): ≤5%
• Wide operating temperature: -40℃ to +75℃
• High conversion efficiency: peak ≥96%

Parametric Performance (key items)

• Model: TH30F10030C8E-WT
• AC input rated voltage: 380Vac (three-phase, no neutral); operating range 285–475Vac
• Frequency: 50±5Hz
• Power factor: ≥0.99
• AC overvoltage protection: 487±10Vac; undervoltage protection: 270±10Vac
• DC rated output power: 30kW
• DC output voltage range: 50–1000Vdc
• DC output current range: 0.5–100A
• Constant power: for 300–1000Vdc constant 20kW output (product supports constant-power operation in specified ranges)
• Peak efficiency: ≥96%
• Soft start time: 3–8s
• Short-circuit protection: self-recovery protection
• Voltage regulation accuracy: ≤±0.5%
• Current regulation accuracy: ≤±1%
• Current sharing imbalance: ≤±5%
• THD: ≤5%

Operation Environment

• Working temperature: -40℃ to +75℃
• Relative humidity: ≤95% (non-condensing)
• Altitude: ≤2000m (derating above 2000m)

Product Features

• Cooling method: Fan cooling
• Standby power consumption: <10W
• Communication protocol: CAN (CAN bus), CAN baud rate 125 kb/s, CAN level 5V
• Address/setting: Digital display with key operation
• Dimensions (L×W×H): 460 × 218 × 84 mm
• Weight: ≤13 kg
• MTBF: 500,000 hours
• Mounting: horizontal, side-standing or inverted (custom front-panel options available)
• Optional potting (glue filling) supported

Production & Test Center
Manufactured in facilities with ISO9001 and IATF16949 certifications. Production processes include SMT lines, wave soldering, coating and aging tests. Test center comprises EMC laboratory and comprehensive charger/module test equipment.

Certificates & Export
Company and product certifications include ISO9001 and IATF16949; charging modules and EV chargers hold certifications such as CE/TUV and are exported to multiple countries.

Packaging & Shipping
Products are packaged in protective packaging suitable for sea, air or express transport. Small orders typically shipped by express; large or containerized shipments by sea or air freight.

FAQ (selected)

• Q: What is the module communication protocol?
  A: CAN; baud rate 125 kb/s; voltage level 5V.
• Q: Do modules support potting (glue filling)?
  A: Yes, series support potting on request.
• Q: What installation orientations are supported?
  A: Horizontal, side-standing or inverted; front-panel customization available.
• Q: Typical lead time?
  A: Varies with quantity and customization; guideline example: ~35 days for large/custom batches; small quantities/samples faster.
• Q: Payment terms?
  A: Standard advance TT; negotiated terms (e.g., 50/50 or 30/70) may be possible for long-term partners.
• Q: Warranty period?
  A: Standard 12 months from receipt of shipment.
• Q: After-sales service?
  A: Online and on-site support available per contract; 24‑hour response scheme for project cases.

Technical Specifications

• Model: TH30F10030C8E-WT
• Brand: Tonhe
• AC Input Voltage: Rated 380Vac (three-phase); operating range 285–475Vac
• Input Frequency: 50±5Hz
• Input Power Factor: ≥0.99
• Input Overvoltage Protection: 487±10Vac
• Input Undervoltage Protection: 270±10Vac
• DC Rated Output Power: 30kW
• Output Voltage Range: 50–1000Vdc
• Output Current Range: 0.5–100A
• Constant Power Range: 300–1000Vdc (constant 20kW in specified range)
• Peak Efficiency: ≥96%
• Soft Start Time: 3–8s
• Short Circuit Protection: Self-recovery protection
• Voltage Regulation Accuracy: ≤±0.5%
• Total Harmonic Distortion (THD): ≤5%
• Current Regulation Accuracy: ≤±1%
• Current Sharing Imbalance: ≤±5%
• Operating Temperature: -40℃ to +75℃
• Relative Humidity: ≤95% (no condensation)
• Altitude: ≤2000m (derating above 2000m)
• Cooling Method: Fan cooling
• Standby Power Consumption: <10W
• Communication Protocol: CAN
• Address Setting: Digital screen display with key operation
• Dimension (L×W×H): 460 × 218 × 84 mm
• Weight: ≤13 kg
• MTBF: 500,000 hours
