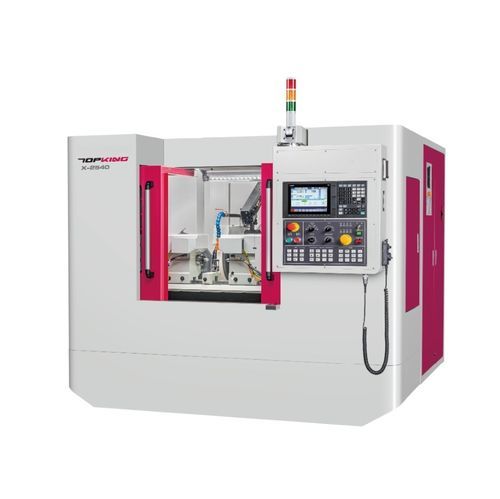

Cylindrical grinding machine X-2540

workpiecefor large workpiecesfor small workpieces

INTRODUCTION
The X series CNC cylindrical grinding machine integrates advanced design and innovative features, offering efficient, precise, and flexible machining solutions. This grinder can meet various processing needs and ensure high-quality results for small or large components.

The X-axis and Z-axis of the X series CNC cylindrical grinding machine adopt a cross-slide design, effectively reducing the footprint and axial travel, saving production space. The high-rigidity machine body and the heavy-duty spindle and tailstock significantly increase the component load capacity.

The high rigidity machine body ensures stability during grinding, providing high-quality machining results. The operating system is equipped with a high-performance CNC control system and a built-in graphical user interface (GUI), making setup easy and enabling users to operate with ease. The grinding applications are extensive, offering customers the most suitable machining solutions.

| CAPACITY
Swivel Over Table: Ø270 mm
Distance Between Center: 400 mm
Max. Grinding Dia.: Ø250 mm
Max. Grinding Length: 400 mm

MACHINE FEATURE

• USER FRIENDLY OPERATION SYSTEM: Built-in advanced CNC control system with GUI. Allows dividing complex components into several grinding processes via graphical guidance; simplifies process editing for grinding and dressing without complicated G/M code programming.
• RIGID MACHINE BASE: High rigidity machine base made of Meehanite cast iron with annealing and aging treatment. Slideways treated by high-frequency hardening and precision grinding for deformation-free and outstanding wear resistance.
• WORK TABLE: Permanently bolted to the machine. Cross slide design reduces travels, improving working speed and precision stability.
• CROSS-SLIDER DESIGN: X and Z axes designed as cross-slider to reduce machine space; both axes covered by enclosed telescopic covers to protect transmission and prevent contamination from grinding debris and coolant.
• FLEXIBLE FEED DESIGN: Precise linear guides and ball screw design for two-axis movement; wear-resistant linear guides and low-backlash ball screws provide fast, flexible feed and high machining quality for small components.
• WHEELHEAD CONSTRUCTION: G.W. spindle uses precision bearings; spindle made of high-quality alloy steel (SNCM-220) with multiple heat treatments and surface grinding/mirroring to achieve surface hardness above HRC62° for long life and high precision.
• WORKHEAD AND TAILSTOCK: Workhead driven by servo motor with stepless variable speed. Hydraulic tailstock optional. Flat air pressure design for easy movement and reduced friction. Central cooling system prevents center-hole heating and deformation.
• DIAMOND TOOL HOLDER: Tailstock-mounted type standard; standard dressing device mounted on tailstock. Optional diamond roller dressing device (worktable- or tailstock-mounted).

GRINDING CYCLE
Includes standard grinding cycle workflows and dressing cycle examples for wheel dressing and in-process operations.

STANDARD ACCESSORIES

• CNC Controller (Brand: Mitsubishi) x 1 set
• Grinding Wheel and Flange x 1 set
• Carbide Tipped Work Centers (2 pcs/set) x 1
• Diamond Tool Holder (tailstock mounted type) x 1 set
• Linear Scale for X-axis x 1 set
• Grinding Wheel Inverter x 1 set
• Electric System x 1 set
• Fully Enclosed Splash Guard x 1 set
• Lubrication System x 1 set
• Coolant System x 1 set
• Work Lamp x 1 set
• Tools (Leveling pad) and Tool Box x 1 set

OPTIONAL ACCESSORIES

• Hydraulic Tailstock
• Cam-locked Driving Dogs
• Work Holder 2 pcs/set
• 2-point Steady Rest
• Adjustable 3-point Steady Rest
• Adjustable 3-jaw Scroll Chuck
• Adjustable 4-jaw Scroll Chuck
• Wheel Balancing Stand and Arbor
• Auto. Grinding Wheel Balancer
• Spare Grinding Wheel and Flange
• Diamond Roller Dressing Device (worktable mounted type)
• Diamond Roller Dressing Device (tailstock mounted type)
• Touch Probe Gauge
• Auto. In-Process Gauge
• Gap Control
• Linear Scale for Z-axis
• Magnetic Coolant Separator
• Paper Filter
• Oil Mist Collector

VIDEO
Embedded product-related video available on the product page.

Caractéristiques / Spécifications techniques

• Swing Over Table: Ø270 mm
• Distance Between Centers: 400 mm
• Max. Grinding Diameter: Ø250 mm
• Max. Grinding Length: 400 mm
• Max. Load Held Between Centers: 15 kg
• Center Height (from table to center tip): 135 mm
• Grinding Wheel Size (O.D. x Width x I.D.): Ø510 x 50 x Ø127 mm
• Grinding Wheel Linear Velocity: 45 m/sec
• Worktable Swiveling Angle: -1° ~ +8°
• Workhead Swiveling Angle: -30° ~ +90°
• Workhead Center Tapper: MT. No. 3
• Workhead Spindle Speed: 10 ~ 300 rpm
• Max. Load of Spindle (tool holder included): 15 kg (Max. Length: 100 mm)
• Tailstock Center Tapper: MT. No. 3
• Tailstock Center Moving: Manual type
• Tailstock Stroke: 25 mm
• X-axis Max. Travel: 300 mm
• X-axis Rapid Feedrate Speed: 10000 mm/Min
• X-axis Auto. Feeding Speed: 0.001 ~ 2000 mm/Min
• X-axis Min. Feeding Setting: 0.001 mm
• Z-axis Max. Travel: 580 mm
• Z-axis Rapid Feedrate Speed: 10000 mm/Min
• Z-axis Auto. Feeding Speed: 0.001 ~ 2000 mm/Min
• Z-axis Min. Feeding Setting: 0.001 mm
• Drive Motors: Grinding Wheel Spindle 5.5 kW; Workhead Spindle Motor (servo) 1.0 kW; Wheelhead Feed X-axis (servo) 1.5 kW; Table Feed Z-axis (servo) 1.5 kW
• Hydraulic Oil Pump (for opt. acc.): 0.75 kW
• Coolant Pump: 0.18 kW
• Lubrication Oil Tank (for opt. acc.): 18 L
• Coolant Tank: 110 L
• Machine Dimension: 2300 x 2210 x 1960 mm
• Net Weight: 4300 kg
• Center Height (from floor to center tip): 1110 mm
