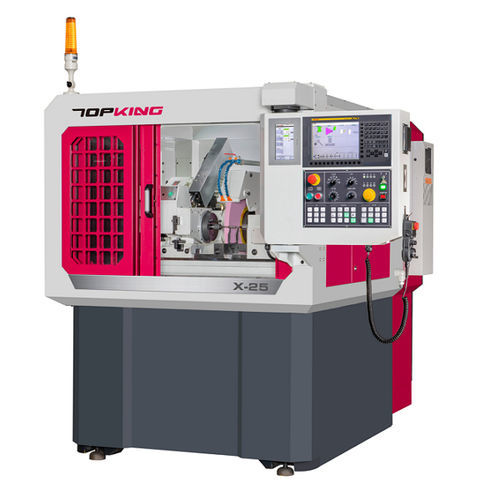

Cylindrical grinding machine X-25

workpiecehorizontalCNC

INTRODUCTION
The X-25 CNC cylindrical grinding machine combines a compact cross-slide layout with a high-rigidity structure to deliver precise, space-efficient grinding for small to medium components. It features a graphical CNC interface for simplified setup and broad grinding application compatibility.

CAPACITY

• Swivel Over Table: Ø270 mm
• Distance Between Centers: 200 mm
• Max. Grinding Dia.: Ø250 mm
• Max. Grinding Length: 150 mm

MACHINE FEATURES
USER FRIENDLY OPERATION SYSTEM
Built-in high-performance CNC control with GUI guides the operator through graphical process steps, enabling numerical editing of grinding and dressing procedures without manual G/M programming.

RIGID MACHINE BASE
High-rigidity Meehanite cast iron base with annealing and aging treatment. Slideways undergo high-frequency hardening and precision grinding for low deformation and excellent wear resistance.

WORK TABLE
Permanently bolted work table with cross-slide design to reduce travels and improve feed speed and precision stability.

CROSS-SLIDER DESIGN
X and Z axes use cross-sliders to minimize machine footprint. Enclosed telescopic covers protect transmission components from grinding debris and coolant.

FLEXIBLE FEED DESIGN
Precision linear guides and ball screws on X-25 ensure wear resistance, low friction, high load capacity, minimal backlash and fast, flexible feeding suitable for small components.

WHEELHEAD CONSTRUCTION
Grinding spindle (G.W.) uses precision bearings for long service life. Spindle material: alloy steel (SNCM-220) with multi-stage heat treatment and precision grinding; surface hardness > HRC62°.

WORKHEAD AND TAILSTOCK
Workhead driven by servo motor with stepless speed control. Hydraulic tailstock optional. Both use flat air pressure design for easy movement and reduced friction. Central cooling prevents heating and deformation at center contact surfaces.

DIAMOND TOOL HOLDER
Standard tailstock-mounted dressing device. Multiple dressing options available. Optional: Diamond Roller Dressing Device (worktable- or tailstock-mounted).

STANDARD ACCESSORIES

• CNC Controller (Brand: Mitsubishi) x 1 set
• Grinding Wheel and Flange x 1 set
• Carbide Tipped Work Centers (2 pcs/set) x 1
• Diamond Tool Holder (tailstock mounted type) x 1 set
• Linear Scale for X-axis x 1 set
• Grinding Wheel Inverter x 1 set
• Electric System x 1 set
• Fully Enclosed Splash Guard x 1 set
• Lubrication System x 1 set
• Coolant System x 1 set
• Work Lamp x 1 set
• Tools (Leveling pad) and Tool Box x 1 set

OPTIONAL ACCESSORIES

• Hydraulic Tailstock
• Cam-locked Driving Dogs
• Work Holder 2 pcs/set
• 2-point Steady Rest
• Adjustable 3-point Steady Rest
• Adjustable 3-jaw Scroll Chuck
• Adjustable 4-jaw Scroll Chuck
• Wheel Balancing Stand and Arbor
• Auto. Grinding Wheel Balancer
• Spare Grinding Wheel and Flange
• Diamond Roller Dressing Device (worktable mounted)
• Diamond Roller Dressing Device (tailstock mounted)
• Touch Probe Gauge
• Auto. In-Process Gauge
• Gap Control
• Linear Scale for Z-axis
• Magnetic Coolant Separator
• Paper Filter
• Oil Mist Collector

SPECIFICATION
Capacity - Swing Over Table: Ø270 mm
Capacity - Distance Between Centers: 200 mm
Capacity - Max. Grinding Diameter: Ø250 mm
Capacity - Max. Grinding Length: 150 mm
Capacity - Max. Load Held Between Centers: 5 kg
Capacity - Center Height (from table to center tip): 135 mm
Grinding Wheel - Size (O.D. x Width x I.D.): Ø510 x 50 x Ø127 mm
Grinding Wheel - Linear Velocity: 45 m/sec
Worktable - Swiveling Angle: -1° ~ +10°
Workhead - Swiveling Angle: Fixed
Workhead - Center Taper: MT. No. 3
Workhead - Spindle Speed: 10 ~ 300 rpm
Workhead - Max. Load of Spindle (tool holder included): 15 kg (Max. Length: 100 mm)
Tailstock - Center Taper: MT. No. 3
Tailstock - Center Moving: Manual type
Tailstock - Stroke: 25 mm
X-axis Travel - Max. Travel: 210 mm; Rapid Feedrate Speed: 10000 mm/Min; Auto. Feeding Speed: 0.001 ~ 2000 mm/Min; Min. Feeding Setting: 0.001 mm
Z-axis Travel - Max. Travel: 260 mm; Rapid Feedrate Speed: 10000 mm/Min; Auto. Feeding Speed: 0.001 ~ 2000 mm/Min; Min. Feeding Setting: 0.001 mm
Drive Motors - Grinding Wheel Spindle: 5.5 kW
Drive Motors - Workhead Spindle Motor (servo motor): 1.0 kW (AC servo motor)
Drive Motors - Wheelhead Feed X-axis (servo motor): 1.5 kW (AC servo motor)
Drive Motors - Table Feed Z-axis (servo motor): 1.5 kW (AC servo motor)
Drive Motors - Hydraulic Oil Pump (for opt. acc.): 0.75 kW
Drive Motors - Coolant Pump: 0.18 kW
Tank Capacities - Lubrication Oil Tank (for opt. acc.): 18 L
Tank Capacities - Coolant Tank: 110 L
Machine - Dimension: 1800 x 2310 x 1800 mm
Machine - Net Weight: 3300 kg
Machine - Center Height (from floor to center tip): 1150 mm

TECHNICAL SPECIFICATIONS

• Swing Over Table: Ø270 mm
• Distance Between Centers: 200 mm
• Max. Grinding Diameter: Ø250 mm
• Max. Grinding Length: 150 mm
• Max. Load Held Between Centers: 5 kg
• Center Height (table to center tip): 135 mm
• Grinding Wheel Size: Ø510 x 50 x Ø127 mm
• Linear Velocity: 45 m/sec
• X-axis Max Travel: 210 mm; Rapid: 10000 mm/Min; Auto Feed: 0.001 ~ 2000 mm/Min; Min Setting: 0.001 mm
• Z-axis Max Travel: 260 mm; Rapid: 10000 mm/Min; Auto Feed: 0.001 ~ 2000 mm/Min; Min Setting: 0.001 mm
• Grinding Wheel Spindle Motor: 5.5 kW
• Workhead Spindle Motor: 1.0 kW (AC servo)
• Wheelhead & Table Feed Motors: 1.5 kW (AC servo) each
• Coolant Tank: 110 L
• Machine Dimensions: 1800 x 2310 x 1800 mm
• Net Weight: 3300 kg
