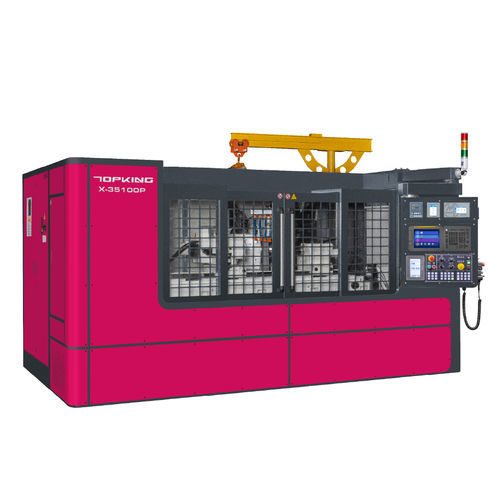

Angular grinding machine X-35100P

external cylindricalfor gearsfor shaft

INTRODUCTION
The TOPKING X-P series CNC External Cylindrical Grinder incorporates plunge grinding and an angular wheelhead to deliver excellent end-face grinding performance. It performs both end-face and outer diameter grinding and is equipped with a 180 mm wide grinding wheel for one-time processing to improve production efficiency. This series features a reinforced structure, a heavy-duty main spindle, and a tailstock for robust support. The cross-slide design of the X and Z axes reduces footprint while maximizing axial travel, enhancing machine performance for stable, reliable grinding solutions. The X-P series is suitable for high-precision components such as shafts (motor shafts, ball screws, drive shafts) and precision gears, delivering high machining quality and productivity.

CAPACITY
Swivel Over Table: Ø350 mm
Distance Between Center: 650 mm
Max. Grinding Dia.: Ø350 mm
Grinding Wheel: Ø610 x 50 x Ø254 mm

MACHINE FEATURES
USER FRIENDLY OPERATION SYSTEM
The built-in advanced CNC control system with GUI guides operators in dividing complex workpieces into multiple grinding processes and simplifies process editing for grinding and dressing without requiring complicated G/M code programming.

RIGID MACHINE BASE
High rigidity machine base made of Meehanite cast iron with annealing and aging treatment. Slideways undergo high-frequency hardening and precision grinding for deformation-free operation and outstanding wear resistance. Thick, solid sliding seat mechanism and 1 V 1 flat slideway structure ensure best precision and stability during grinding.

HIGH RIGIDITY SLIDEWAY
1V1 flat guideway design with high-frequency hardening and precision grinding for improved wear resistance and stability. Dual-axis system with high-rigidity box way sliders and large ball screws enhances load-bearing capacity and stable wheelhead movement.

WORK TABLE
The worktable is anchored to the base and features a cross-slide design for the X and Z axes to minimize travel and improve processing speed and stability.

CROSS-SLIDER DESIGN & AXIS GUIDANCE
Cross-slide structure on X and Z axes enables flexible operations and reduces overall footprint. Dual-axis design with fully enclosed telescopic guards isolates grinding debris and prevents coolant contamination for long-term stable operation.

WHEELHEAD CONSTRUCTION
G.W. spindle uses precision bearings for long service life and easy maintenance. The G.W. spindle is made of high-quality alloy steel SNCM-220 and undergoes normalization, quenching and tempering, carburizing, cryogenic treatment, precision grinding and mirror treatment; surface hardness reaches above HRC62° for wear resistance and high precision.

RIGID WORKHEAD AND TAILSTOCK
Workhead and tailstock designed for heavy workpieces with solid structural rigidity. Workhead driven by servo motor for stepless variable speed. Hydraulic tailstock optional. Flat air pressure design minimizes friction. Cooling system for center hole to prevent deformation from heat.

DIAMOND TOOL HOLDER MOUNTED ON TAILSTOCK
(STANDARD FOR X-P SERIES) Dressing device fixed on tailstock. Multiple diamond tool holder types selectable according to workpiece requirements.

G.W. JIB CRANE
(STANDARD FOR X-35 SERIES) Integrated jib crane for wheel replacement installed within a full splash guard to enable safe and space-saving wheel replacement operations.

STANDARD ACCESSORIES

• CNC Controller (Brand: Mitsubishi) x 1 set
• Grinding Wheel and Flange x 1 set
• Carbide Tipped Work Centers (2 pcs/set) x 1 set
• Diamond Tool Holder (tailstock mounted type) x 1 set
• Jib Crane for Loading / Unloading G.W. x 1 set
• Linear Scale for X-axis x 1 set
• Grinding Wheel Inverter x 1 set
• Electric System x 1 set
• Fully Enclosed Splash Guard x 1 set
• Lubrication System x 1 set
• Coolant System x 1 set
• Work Lamp x 1 set
• Tools (Leveling pad) and Tool Box x 1 set

OPTIONAL ACCESSORIES

• Hydraulic Tailstock
• Cam-locked Driving Dogs
• Work Holder 2 pcs/set
• 2-point Steady Rest
• Adjustable 3-point Steady Rest
• Adjustable 3-jaw Scroll Chuck
• Adjustable 4-jaw Scroll Chuck
• Wheel Balancing Stand and Arbor
• Auto. Grinding Wheel Balancer
• Spare Grinding Wheel and Flange
• Diamond Roller Dressing Device (worktable mounted type)
• Diamond Roller Dressing Device (tailstock mounted type)
• Touch Probe Gauge
• Auto. In-Process Gauge
• Gap Control
• Linear Scale for Z-axis
• Magnetic Coolant Separator
• Paper Filter
• Oil Mist Collector

SPECIFICATION
Swing Over Table: Ø350 mm
Distance Between Centers: 1200 mm
Max. Grinding Diameter: Ø350 mm
Max. Grinding Length: 1050 mm
Max. Load Held Between Centers: 150 kg
Center Height (from table to center tip): 135 mm
Grinding Wheel Size (O.D. x width x I.D.): Ø610 x 50 x Ø254 mm
Linear Velocity: 45 m/sec
Worktable Swiveling Angle: 0° ~ 3°
Workhead Swiveling Angle: Fixed Type
Workhead Center Tapper: MT. No. 4
Workhead Spindle Speed: 10 ~ 300 rpm
Max. Load of Spindle (tool holder included): 35 kgs (max. length: 150 mm)
Tailstock Center Tapper: MT. No. 4
Tailstock Center Moving: Manual type
Tailstock Stroke: 25 mm
Tailstock Micro Adjustment (opt.): ±30 μm
X-axis Travel Max. Travel: 270 mm; Rapid Feedrate Speed: 6000 mm/Min; Auto. Feeding Speed: 0.001 ~ 2000 mm/Min; Min. Feeding Setting: 0.001 mm
Z-axis Travel Max. Travel: 1380 mm; Rapid Feedrate Speed: 6000 mm/Min; Auto. Feeding Speed: 0.001 ~ 2000 mm/Min; Min. Feeding Setting: 0.001 mm
Drive Motors: Grinding Wheel Spindle 11 kW; Workhead Spindle 1.8 kW (servo motor); Wheelhead Feed X-axis 1.5 kW (MITSUBISHI) / 1.4 kW (FANUC); Table Feed Z-axis 3.5 kW (MITSUBISHI) / 4.4 kW (FANUC); Lubrication Oil Pump (Guideway) 0.18 kW; Lubrication Oil Pump 0.37 kW; Hydraulic Oil Pump (for opt. acc.) 0.37 kW; Coolant Pump 0.18 kW
Tank Capacities: Lubrication Oil Tank (Guideway) 30 L; Hydraulic Oil Tank (for opt. acc.) 30 L; Coolant Tank 30 L
Machine Dimension (L x W x H): 5200 x 3900 x 2540 mm
Net Weight: 11000 kg
Center Height (from floor to center tip): 1250 mm

Caractéristiques / Spécifications techniques

• Model: X-35100P
• Swing Over Table: Ø350 mm
• Distance Between Centers: 1200 mm
• Max. Grinding Diameter: Ø350 mm
• Max. Grinding Length: 1050 mm
• Max. Load Held Between Centers: 150 kg
• Center Height (table to center tip): 135 mm
• Grinding Wheel Size: Ø610 x 50 x Ø254 mm
• Grinding Wheel Spindle Power: 11 kW
• Workhead Spindle: 1.8 kW (servo)
• X-axis Travel: 270 mm (rapid 6000 mm/min)
• Z-axis Travel: 1380 mm (rapid 6000 mm/min)
• Machine Dimensions (LxWxH): 5200 x 3900 x 2540 mm
• Net Weight: 11000 kg
