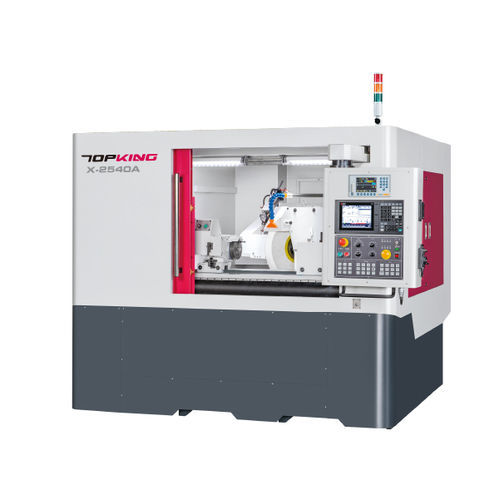

Angular grinding machine X-2540A

cylindricalworkpiecehorizontal

INTRODUCTION
TOPKING's X-2540A is a CNC angular cylindrical grinding machine designed for simultaneous outside-diameter (O.D.) and end-face grinding in a single clamping. The integrated angular wheelhead and cross-slider X/Z design reduce setup time, shorten production cycles and deliver consistent precision with simplified programming via a GUI-based CNC control.

CAPACITY

• Swing Over Table: Ø270 mm
• Distance Between Centers: 400 mm
• Maximum Grinding Diameter: Ø250 mm
• Maximum Grinding Length: 400 mm
• Maximum Load Between Centers: 15 kg
• Center Height (table to center tip): 135 mm

MACHINE FEATURES

• GUI-based CNC control for process segmentation, numeric dressing and simplified editing without manual G/M coding.
• Rigid Meehanite cast-iron base with annealing and aging treatment; hardened and ground slideways for long-term stability.
• Permanently bolted work table and cross-slide layout to reduce travel and improve speed and positional stability.
• Compact cross-slider arrangement for X and Z axes; enclosed telescopic covers protect transmissions from coolant and debris.
• High-enclosed linear scales on X and Z axes as standard for accurate positioning and finish quality.
• Precision linear guides and ball screws for low friction, high load capacity and minimal backlash; supports flexible feed modes for small components.
• Angular wheelhead with G.W. spindle using precision bearings; spindle material SNCM-220 with multi-stage heat treatment and grinding to >HRC62 for wear resistance.
• Servo-driven workhead with stepless speed; optional hydraulic tailstock; flat-air-pressure design to reduce friction and center heating; central cooling to prevent deformation.
• Diamond tool holder (tailstock-mounted) with standard dressing device; multiple dressing options available.

SPECIFICATIONS

• Grinding Wheel Size (O.D. x W x I.D.): Ø510 × 50–75 × Ø127 mm
• Grinding Wheel Linear Velocity: 33 m/s (option: 45 m/s)
• Worktable Swiveling Angle: -1° ~ +8°
• Workhead Swiveling Angle: -30° ~ +90°
• Workhead Spindle Speed: 10 ~ 300 rpm
• Center Taper: MT No. 3 (option: MT No. 4)
• X-axis Travel: 300 mm; Rapid: 6000 mm/min; Auto Feed: 0.001 ~ 2000 mm/min; Min Setting: 0.001 mm
• Z-axis Travel: 580 mm; Rapid: 6000 mm/min; Auto Feed: 0.001 ~ 2000 mm/min; Min Setting: 0.001 mm
• Motors: Grinding Wheel Spindle 5.5 kW; Workhead Spindle 1.0 kW (servo); Wheelhead X-axis 1.5 kW (servo); Table Z-axis 1.5 kW (servo)
• Coolant Pump: 0.18 kW; Optional Hydraulic Pump: 0.75 kW (18 L capacity)
• Machine Dimensions (L × W × H): 2200 × 2150 × 1900 mm; Net Weight: 4300 kg; Center Height (floor to center tip): 1110 mm

STANDARD ACCESSORIES

• Mitsubishi CNC controller ×1 set
• Grinding wheel and flange ×1 set
• Carbide-tipped work centers (2 pcs) ×1 set
• Diamond tool holder (tailstock-mounted) ×1 set
• Cam-locked driving dogs ×1 set
• Linear scales for X and Z axes ×1 set
• Grinding wheel inverter ×1 set
• Tools (leveling pads) and toolbox ×1 set
• Wheel balancing stand and arbor ×1 set
• Touch probe gauge ×1 set
• Fully enclosed splash guard ×1 set
• Electrical system, lubrication and coolant systems, work lamp ×1 set each

OPTIONAL ACCESSORIES

• Hydraulic tailstock
• Work holders (2 pcs/set)
• 2-point steady rest
• Adjustable 3-point steady rest
• Adjustable 3-jaw chuck
• Adjustable 4-jaw chuck
• Automatic grinding wheel balancer
• Spare grinding wheel and flange
• Jib crane for loading/unloading grinding wheel
• Automatic in-process gauge, gap control, magnetic coolant separator, paper filter, oil mist collector

TECHNICAL DATA

• Swing Over Table: Ø270 mm
• Distance Between Centers: 400 mm
• Max Grinding Diameter: Ø250 mm
• Max Grinding Length: 400 mm
• Max Load Between Centers: 15 kg
• Grinding Wheel Linear Velocity: 33 m/s (opt. 45 m/s)
• X-axis / Z-axis Travel: 300 mm / 580 mm
• Rapid Feed: 6000 mm/min (both axes)
• Machine Weight / Dimensions: 4300 kg / 2200 × 2150 × 1900 mm
