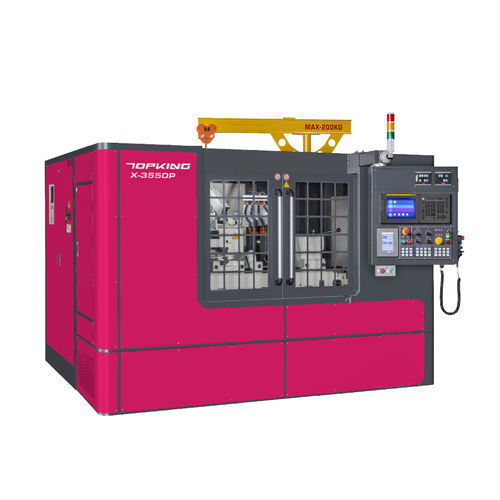

Angular grinding machine X-3550P

external cylindricalfor gearsfor shaft

INTRODUCTION
The X-3550P is a CNC external cylindrical grinder designed for combined end-face and outer-diameter grinding. It features plunge grinding and an angular wheelhead with a 180 mm wide grinding wheel to enable efficient one-pass processing of shafts and gear components, improving throughput and repeatability for industrial production.

CAPACITY

• Swing Over Table: Ø350 mm
• Distance Between Centers: 650 mm
• Max. Grinding Diameter: Ø350 mm
• Max. Grinding Length: 500 mm
• Grinding Wheel: Ø610 x 50 x Ø254 mm (linear velocity 45 m/sec)

MACHINE FEATURES
USER-FRIENDLY CNC SYSTEM
The integrated CNC with graphical GUI allows graphical division of complex parts into sequential grinding processes and numeric editing of grinding/dressing operations—no manual G/M code programming required.

RIGID MACHINE BASE
Machine base in Meehanite cast iron with annealing and aging treatment. Slideways undergo high-frequency hardening and precision grinding to ensure low deformation and high wear resistance. 1V1 flat slideway and robust sliding seat improve precision and stability.

HIGH-RIGIDITY SLIDEWAYS
1V1 flat guideway with dual-axis box-way sliders and large ball screws for improved load capacity and wheelhead stability.

WORK TABLE & CROSS-SLIDER DESIGN
Cross-slide X/Z design minimizes footprint while maximizing axial travel. Fully enclosed telescopic guards protect transmissions from swarf and coolant.

WHEELHEAD CONSTRUCTION
Grinding spindle with precision bearings. Spindle material SNCM-220 is normalized, quenched/tempered, carburized, cryogenically treated and precision ground to >HRC62 for high wear resistance and long service life.

WORKHEAD & TAILSTOCK
Rigid workhead and tailstock suitable for heavy workpieces. Workhead driven by servo motor (stepless speed). Optional hydraulic tailstock. Cooling to center holes reduces thermal distortion. Diamond tool holder for dressing mounted on tailstock (standard for X-P series).

MAINTENANCE & HANDLING
Integrated jib crane for wheel replacement mounted inside full splash guard to facilitate safe, space-saving wheel changes. Devices for dressing and grinding cycles support efficient operation.

SPECIFICATION

• Model: X-3550P
• Manufacturer / Brand: TOPKING Technology
• Type: CNC External Cylindrical Grinder (plunge grinding, angular wheelhead)
• Max. Grinding Diameter: Ø350 mm
• Max. Grinding Length: 500 mm
• Distance Between Centers: 650 mm
• Grinding Wheel Size: Ø610 x 50 x Ø254 mm
• Grinding Wheel Linear Velocity: 45 m/sec
• X-axis Travel: 270 mm; Z-axis Travel: 800 mm
• Rapid Feedrate: 6000 mm/min (X & Z)
• Spindle Power (grinding wheel): 11 kW
• Workhead Spindle: 1.8 kW (servo)
• Max Load Between Centers: 150 kg
• Machine Dimensions (L x W x H): 4600 x 3700 x 2540 mm
• Net Weight: 8000 kg

STANDARD ACCESSORIES

• CNC Controller (Mitsubishi) x1
• Grinding Wheel & Flange x1
• Carbide Tipped Work Centers (2 pcs) x1
• Diamond Tool Holder (tailstock-mounted) x1
• Jib Crane for Wheel Loading/Unloading x1
• Linear Scale for X-axis x1
• Grinding Wheel Inverter x1
• Electric System x1
• Fully Enclosed Splash Guard x1
• Lubrication System x1
• Coolant System x1
• Work Lamp x1
• Tools (leveling pads) & Toolbox x1

OPTIONAL ACCESSORIES

• Hydraulic Tailstock
• Cam-locked Driving Dogs
• Work Holders (2 pcs)
• 2-point Steady Rest
• Adjustable 3-point Steady Rest
• Adjustable 3-jaw Scroll Chuck
• Adjustable 4-jaw Scroll Chuck
• Wheel Balancing Stand & Arbor
• Automatic Grinding Wheel Balancer
• Spare Grinding Wheel & Flange
• Diamond Roller Dressing Device (worktable- or tailstock-mounted)
• Touch Probe Gauge
• Automatic In-Process Gauge
• Gap Control
• Linear Scale for Z-axis
• Magnetic Coolant Separator
• Paper Filter
• Oil Mist Collector
