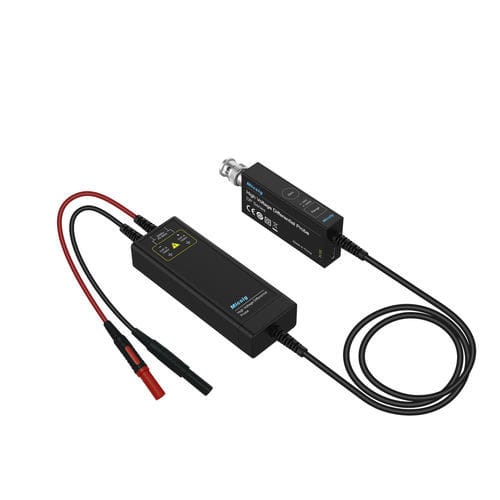

Test probe DP701

activehigh-voltageelectrical conductivity

The DP701 differential probe is a high-performance member of the Micsig DP series high-voltage differential probe, designed to meet diverse high-voltage testing demands. As part of the renowned DP series, it shares the series' advanced features and is compatible with other models like DP700 differential probe, DP1500 high-voltage probe, DP3000 differential probe, and DP7000 100MHz probe, each tailored for specific applications. This probe combines precision and reliability, making it ideal for various industrial testing scenarios. Key Features Bandwidth: The DP701 offers a bandwidth of 150MHz, ensuring accurate measurements in high-frequency environments. For higher bandwidth needs, the series includes 500MHz high-voltage differential probe models like DP705 and DP1505. Max. Input Differential Voltage: It supports suitable voltage ranges for high-voltage testing. For extreme voltage requirements, the series features 7000Vpk differential voltage probe such as DP7000. Noise Performance: As a low noise high-voltage probe, its noise under full bandwidth is 22mVrms (20X) and 80mVrms (200X), with 8mVrms (20X) and 70mVrms (200X) when the 5MHz bandwidth limit is applied, ensuring high sensitivity for small signal detection. CMRR: Being a high CMRR differential probe, it boasts excellent common mode rejection capability with specifications: DC: >-80 dB, 100kHz: >-60dB, 10MHz: >-30dB, 100MHz: >-26dB, making it suitable for floating measurement differential probe tasks involving high common mode voltage at high frequencies. Interface: Equipped with a BNC interface differential probe, it can work seamlessly with any oscilloscope, enhancing compatibility across testing setups.
