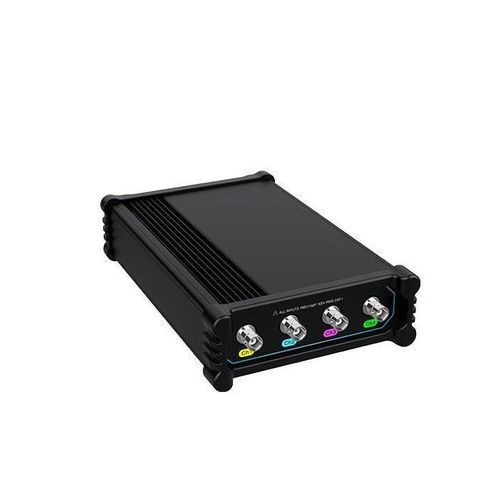

Analog-digital oscilloscope VTO2004

portable4-channelUSB

Product Description
The VTO2004 is a portable split-type oscilloscope combining 200 MHz bandwidth, 4 analog channels, up to 1 GSa/s real-time sampling and up to 50 Mpts memory depth in a compact form factor (140 × 215 × 52 mm, 640 g). An optional 7500 mAh Li-ion battery enables extended field operation up to 24 hours. USB Type-C connectivity allows direct use with Android smartphones, tablets and Android PCs. The instrument supports high/low bandwidth filtering, hardware digital filtering for noise rejection, 31 automated measurements with one-click operation, CAN and LIN bus decoding, Zoom-enabled deep memory for detailed captures, multiple trigger modes and waveform math including FFT for professional analysis.

Key Features

• Friendly UI: Intuitive interface for efficient operation.
• Compact & Portable: Small footprint and 640 g weight suitable for field testing.
• Long Battery Life: Optional 7500 mAh Li-ion battery supports up to 24 hours continuous use.
• Deep Memory: Up to 50 Mpts memory depth with Zoom technology to capture fine signal detail.
• Bandwidth Filtering: High/low bandwidth filtering from 30 kHz to maximum bandwidth.
• Automated Measurements: 31 automated measurement types with one-click selection and clear.
• Hardware Digital Filter: Effective interference and noise rejection.
• Bus Decoding: CAN and LIN protocol decoding supported.
• Android Connectivity: USB Type-C interface for connection to Android devices.

Technical specifications

• Manufacturer: Micsig
• Article Number: OS1129
• Model: VTO2004
• Analog channels: 4
• Bandwidth: 200 MHz (product description) and 350 MHz (specifications table)
• Memory Depth: up to 50 Mpts (product description) and 360 Mpts (specifications table)
• Real-time sampling rate: up to 1 GSa/s (product description) and 3 GSa/s (specifications table)
• Rise Time: ≤1 ns
• Dimensions: 140 × 215 × 52 mm
• Weight: 640 g
• Optional battery: 7500 mAh Li-ion, up to 24 hours continuous operation
• Interface: USB Type-C; compatible with Android devices (smartphone, tablet, Android PC)
• Filtering: High/low bandwidth filtering (from 30 kHz to maximum) and hardware digital filter for noise rejection
• Measurements & Analysis: 31 automated measurement types, waveform math including FFT, multiple trigger modes
• Bus decoding: CAN and LIN
• Deep Memory Zoom technology for capturing overall and detailed waveform information
