High-frequency test probe MOIP200P

interfacecoaxial

Overview

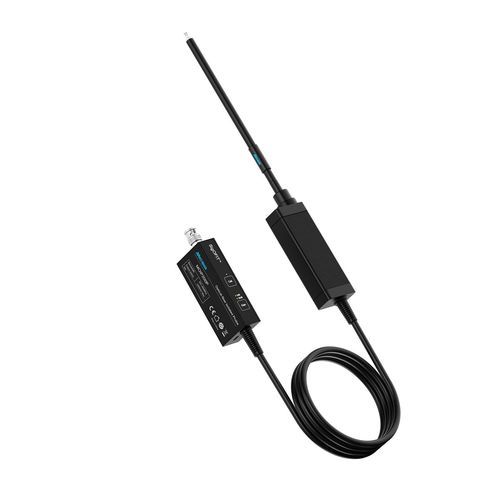

The Micsig MOIP200P is a fiber-optically isolated oscilloscope probe designed for differential and floating voltage measurements in power electronics and semiconductor testing. It provides 200MHz bandwidth with 1.75ns rise time and exceptional common-mode rejection, delivering a complete galvanic isolation solution for high-voltage and sensitive measurement environments.

Key Features

• 200MHz bandwidth: 1.75ns rise time for reliable capture of switching transients.
• High CMRR: 180dB DC common-mode rejection, 122dB at 200MHz.
• 85kV galvanic isolation: 85kVpk isolation rating for high-potential testing.
• Low noise and high accuracy: <0.3mVrms noise, 1% DC accuracy, 0.1% offset drift reduction.
• Modular attenuators: Measurement range 10mV to 20kV with interchangeable tips and dual 0dB/20dB ranges.
• Low input capacitance: 1pF with short coaxial leads to minimize circuit loading.
• Continuous optical calibration: Optical power compensation and automatic calibration for stable long-term measurements.
• Standard interface: BNC output, 2 m fiber optic cable, 12V DC supply.

Applications

• SMPS and DC-DC converter validation
• Motor drive and inverter waveform analysis
• IGBT and wide-bandgap semiconductor testing
• High-voltage insulation and medium-voltage system tests
• EMC/ESD diagnostics and signal integrity verification

Specifications
Bandwidth: 200MHz
Rise time: ≤1.75ns
CMRR: 180dB (DC), 122dB (200MHz)
Isolation rating: 85kVpk
Input capacitance: 1pF
Noise (full bandwidth): <0.3mVrms
Power supply: DC 12V
Interface: BNC
Attenuation ranges: 0dB / 20dB (modular tips)
Measurement range: 10mV to 20kV (with attenuator tips)

Ordering and manufacturer

• Article number: OIP1011
• Manufacturer: Micsig
• Model: MOIP200P
• Cable: 2 m fiber optic cable
• Typical use: laboratory and production test benches for power electronics
