Analog oscilloscope Oscillograph ETO3504

portable4-channelfor PC

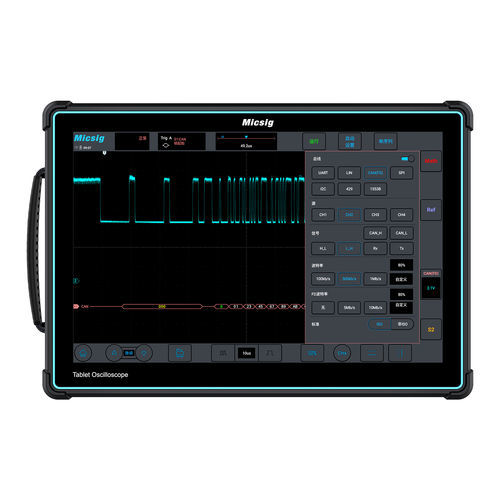

The Micsig ETO3504 is a tablet oscilloscope engineered for laboratory and field measurements, combining a 14-inch antiglare full-touch display with wide bandwidth, deep memory and portable operation for efficient signal analysis.

Overview

• Designed for lab and on-site diagnostics with a tablet form factor and built-in battery for portable use.
• User interface: 14-inch antiglare full touch screen with Micsig Sigtest OS for intuitive control.
• Portable features: built-in Li‑ion battery and power-lock design; VESA 75 × 75 mm mount compatibility for flexible placement.

Key features

• 4 analog channels, 350 MHz bandwidth, 3 GSa/s real-time sampling and 360 Mpts memory depth for accurate capture of complex signals.
• Very high waveform capture rate up to 230,000 wfms/s and segmented storage supporting up to 10,000 events to detect intermittent phenomena.
• Comprehensive signal analysis tools and filters including high-pass/low-pass support.
• Remote control via PC and mobile applications for flexible test setups.

Supported serial bus decoding

• RS-232 / RS-422 / RS-485 / UART
• CAN, CAN FD, LIN
• SPI, I²C
• ARINC-429, MIL-STD-1553B

Technical specifications

• Manufacturer: Micsig
• Model: ETO3504
• Analog channels: 4
• Bandwidth: 350 MHz
• Real-time sampling rate: 3 GSa/s
• Memory depth: 360 Mpts
• Display: 14-inch antiglare full touch screen, 1920 × 1200 pixels
• Battery: 7.4 V / 13,500 mAh Li‑ion (built-in)
• Waveform capture rate: up to 230,000 wfms/s
• Segmented storage: up to 10,000 events
• Noise floor: < 90 μVrms
• VESA mount: 75 mm × 75 mm
• Special features: high-pass/low-pass filter support, power-lock design, remote control (PC/mobile)
