Digital oscilloscope O2002

portable2-channelwith touchscreen

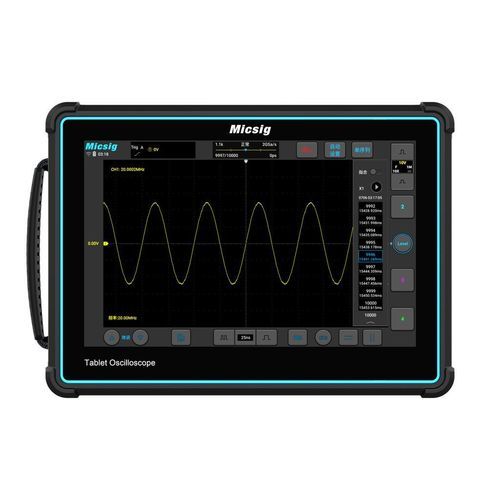

The Micsig TO Series Tablet Oscilloscope - TO2002 is a compact and versatile 2-channel Tablet Oscilloscope, designed to excel in electronic debugging and field testing. As part of the Micsig TO Series Tablet Oscilloscope lineup, it features a 200MHz bandwidth, 1GSa/s sampling rate (single channel) and 110Mpts memory depth, making it suitable for a range of signal analysis tasks . Equipped with a 10.1-inch capacitive touch screen (1280x800 resolution), it functions as a 10.1-inch Touch Screen Oscilloscope, offering intuitive operation with Micsig's advanced touch control algorithms . Its rugged and compact design (26519250mm, 1.9kg with battery) classifies it as a Compact Rugged Tablet Oscilloscope, ideal for on-the-go use . Powered by a 7.4V, 7500mAh Li-ion battery, it qualifies as a Portable Tablet Oscilloscope with Battery, supporting extended field operations, while the Android OS (Android-based OS) ensures a user-friendly interface with seamless multitasking . It supports a High Waveform Capture Rate of 78,000wfms/s, enabling efficient capture of transient signals . As a Serial Bus Decoding Oscilloscope, it handles RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, and I²C protocols, complemented by Hardware Digital Filter Oscilloscope functionality (20MHz bandwidth filter, high-pass/low-pass) for targeted signal analysis . It also offers wireless remote control via Wi-Fi, PC, and mobile app (Android/iOS), making it a Wireless Remote Control Oscilloscope for flexible operation .
