Analog-digital oscilloscope SATO1004

portable4-channelcomputer-controlled

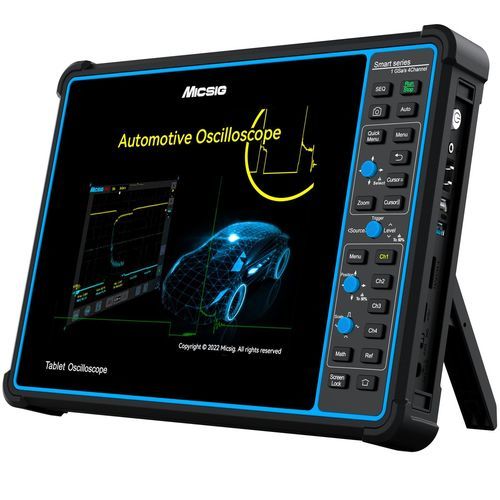

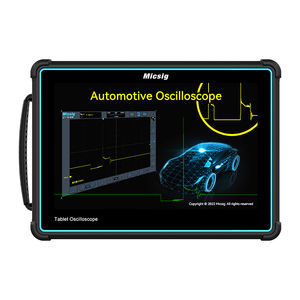

Product overview The Micsig SATO1004 is an automotive tablet oscilloscope designed for vehicle diagnostics and automotive electrical testing. It integrates focused automotive test presets, high-speed waveform capture and deep memory to support charging/start circuit checks, sensor and actuator diagnostics, ignition analysis and vehicle network troubleshooting.

Key features

• Automotive diagnostics: preconfigured presets for charging/starting circuits, sensors, actuators and ignition systems; built-in vehicle network analysis.
• Oscilloscope performance: 100 MHz bandwidth, 4 analog channels, up to 1 GSa/s sampling rate, 70 Mpts memory depth and up to 130,000 wfms/s capture rate.
• Bus decoding: CAN, CAN FD, LIN, FlexRay and K-line decoding for comprehensive network diagnostics.

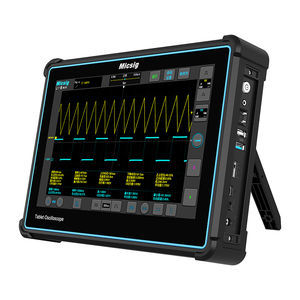

• Tablet touch operation: 8-inch capacitive touchscreen, 800 × 600 resolution with responsive touch algorithm.
• Android platform: Android OS with 32 GB internal storage for app installation and flexible data handling.
• Multiple control options: Wi‑Fi remote control, PC software control and SCPI programming support.
• Portable field design: soft TPU rubber protector, 7,500 mAh battery (~5 hours runtime) and approx. 1.9 kg weight for on-site diagnostics.
• Hardware filtering: built-in low-pass bandwidth filter to reduce signal interference.

Specifications

• Model: SATO1004
• Analog channels: 4
• Bandwidth: 100 MHz
• Real-time sampling rate: up to 1 GSa/s
• Memory depth: 70 Mpts
• Waveform capture rate: up to 130,000 wfms/s
• Rise time: ≤ 3.5 ns
• Display: 8-inch capacitive touchscreen, 800 × 600 resolution
• Operating system: Android
• Internal storage: 32 GB
• Battery: 7,500 mAh lithium-ion, ≈ 5 hours runtime
• Protective case: soft TPU rubber protector
• Automotive bus decoding: CAN, CAN FD, LIN, FlexRay, K-line
• Additional functions: combination test (multi-signal correlation), built-in low-pass hardware filter
• Interfaces: Wi‑Fi remote control, PC software control, SCPI programming, HDMI output, USB 3.0 host, USB Type-C
• Weight: ≈ 1.9 kg (net)
