Analog oscilloscope ATO1004

analog-digitalportable4-channel

Overview

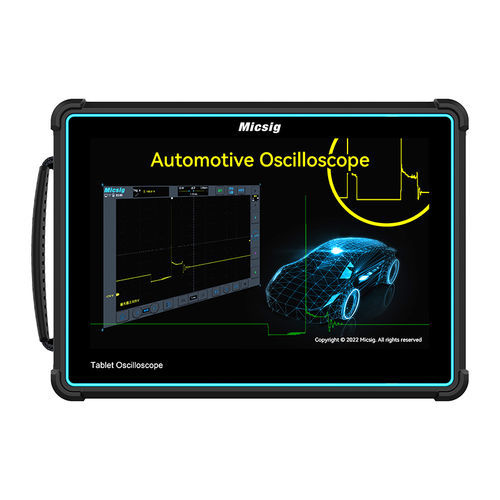

The ATO1004 is a high-performance automotive diagnostic oscilloscope designed for professional vehicle maintenance and troubleshooting. This 100 MHz bandwidth, 4-channel tablet oscilloscope provides up to 1 GSa/s real-time sampling and 110 Mpts memory depth to capture complex waveforms. It integrates a 10.1-inch 1280x800 capacitive touch display, a built-in 7.4 V / 7500 mAh Li-ion battery and an Android-based OS with 32 GB internal storage, making it suitable for field technicians and workshop engineers.

Key Features

• High Bandwidth & Multi-Channel: 100 MHz bandwidth with 4 analog channels for simultaneous signal analysis on modern vehicle systems.
• Fast Sampling & Deep Memory: Up to 1 GSa/s real-time sampling rate and 110 Mpts memory depth for long-duration, detailed captures.
• Large Touch Screen Display: 10.1-inch TFT LCD capacitive touch screen (1280 x 800) for clear waveform visualization and intuitive operation.
• Extended Field Operation: Built-in 7.4 V, 7500 mAh Li-ion battery for extended diagnostics without mains power.
• Professional Automotive Presets: Dedicated presets for charging/start circuits; sensors (ABS, camshaft, MAP, etc.); actuators (injectors, fuel pump, etc.); ignition systems (primary & secondary); and vehicle networks (CAN, LIN, FlexRay).
• Advanced Analysis Tools: Serial bus triggering and decoding (UART, CAN, LIN, SPI, I²C), hardware filtering, 31 automated measurements, FFT and cursor measurements.
• Connectivity & Control: Wi‑Fi, USB, HDMI output and remote control via PC software or mobile app (Android/iOS) for data sharing and control.
• Robust Build & Portability: Compact, lightweight design (~1.9 kg with battery) with ABS+TPU protector and pre-installed handstrap for on-site use.

Specifications
Model: ATO1004
Series: ATO Series
Analog channels: 4
Bandwidth: 100 MHz
Real-time sampling rate: up to 1 GSa/s
Memory depth: 110 Mpts
Rise time: ≤3.5 ns
Display: 10.1-inch TFT LCD capacitive touch screen
Display resolution: 1280 x 800
Battery: 7.4 V, 7500 mAh Li-ion (built-in)
Internal storage: 32 GB
Operating system: Android-based
Weight: approx. 1.9 kg (with battery)
Protector: ABS + TPU housing; pre-installed handstrap
Automotive presets: charging/start circuits; sensors (ABS, camshaft, MAP, etc.); actuators (injectors, fuel pump, etc.); ignition systems; vehicle networks (CAN, LIN, FlexRay)
Analysis & measurements: serial bus triggering/decoding (UART, CAN, LIN, SPI, I²C), hardware filtering, 31 automated measurements, FFT, cursors
Connectivity: Wi‑Fi, USB, HDMI output, remote control via PC/mobile app
