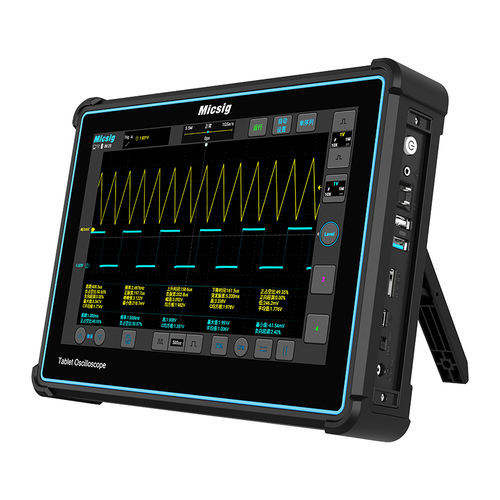

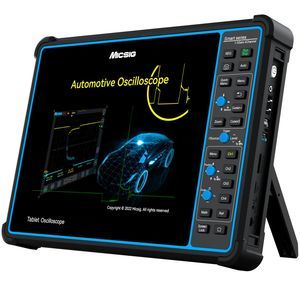

Analog oscilloscope TO1004

analog-digitalportablebench-top

Product Overview
The Micsig TO1004 is a 100 MHz tablet oscilloscope for embedded debugging, electronic testing, education and field service. It offers 4 analog channels, up to 1 GSa/s real-time sampling and up to 110 Mpts memory depth to capture fast transients and long-duration signals with accuracy.

Display, Portability & Power
10.1" capacitive multi-touch display (1280×800) with pinch-to-zoom, drag and tap controls. Integrated 7.4V/7500mAh Li-ion battery with power-off lock for safe transport. Weight approx. 1.9 kg with battery, suitable for bench and field use.

Connectivity & Storage
Wi‑Fi and USB connectivity with remote control via PC software or mobile app (Android/iOS). HDMI output for projection. 32 GB internal storage for waveforms, screenshots and videos.

Analysis, Decoding & Advanced Functions
Hardware-based serial decoding and triggering for RS-232/422/485/UART, CAN, CAN FD, LIN, SPI and I2C. Advanced math functions (+, −, ×, ÷, FFT, integration, differentiation) and hardware digital filtering (high-pass/low-pass, 20 MHz cutoff down to 30 kHz). Fast BIN waveform storage. 31 automatic measurements with statistics (up to 10,000 readings). User-definable channel labels.

Key Features

• 100 MHz bandwidth: 4 analog channels, up to 1 GSa/s real-time sampling.
• Deep memory: Up to 110 Mpts for long acquisitions.
• Fast waveform capture: 780,000 wfms/s with 256-level intensity grading and color temperature display.
• Large touch display: 10.1" capacitive touch, 1280×800 resolution with multi-touch gestures.
• Portable & battery-powered: 7.4V/7500mAh Li-ion battery with power-off lock.
• Comprehensive serial decoding: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I2C hardware decoding and triggering.
• Advanced triggering: Edge, pulse, logic, N-edge, runt, slope, timeout, video and serial bus triggers.
• Fast storage: Save waveforms in BIN format.
• Hardware digital filtering: High-pass/low-pass filters (20 MHz cutoff, down to 30 kHz).
• Remote control & connectivity: Wi‑Fi, USB, HDMI; remote control via PC or mobile app.
• Extensive measurements: 31 automatic measurements with statistics (up to 10,000 readings).
• Large internal storage: 32 GB internal memory.
• Android OS: Android-based operating system.

Technical specifications

• Model: TO1004
• Brand: Micsig
• Analog channels: 4
• Bandwidth: 100 MHz
• Memory depth: 110 Mpts
• Real-time sampling rate: 1 GSa/s
• Rise time: ≤3.5 ns
• Waveform capture rate: 780,000 wfms/s
• Intensity grading: 256 levels + color temperature display
• Display: 10.1" capacitive touch, 1280×800
• Battery: 7.4V / 7500 mAh Li-ion, power-off lock
• Weight: ~1.9 kg (with battery)
• Serial decoding & triggers: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I2C
• Digital filtering: hardware HP/LP (20 MHz cutoff, down to 30 kHz)
• Storage: 32 GB internal
• Connectivity: Wi‑Fi, USB, HDMI; remote control via PC/mobile app
• Fast storage: BIN waveform save
• Automatic measurements: 31 with statistics (up to 10,000 readings)
• Math functions: +, −, ×, ÷, FFT, integration, differentiation
• Operating system: Android-based
