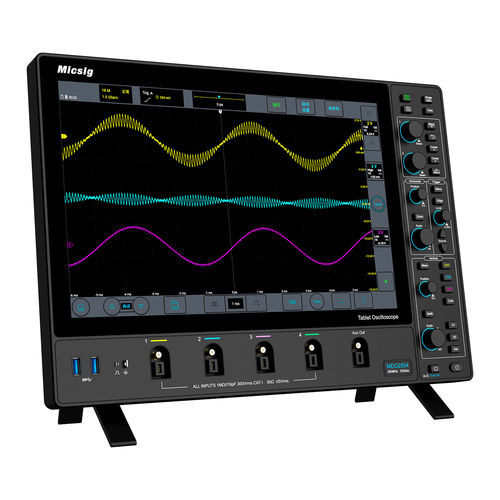

Digital oscilloscope MDO5004

analogmixed-signalbench-top

Overview
The MDO5004 is a 4-channel digital storage oscilloscope by Micsig, offering 500 MHz bandwidth, 360 Mpts memory depth and a 3 GSa/s real-time sampling rate. Designed for precise capture and analysis of analog and mixed signals, it features a low noise floor (<90 µVrms) and a 14-inch anti-glare capacitive touch display (1920x1200). Connectivity includes PC and mobile remote control, SCPI support and 32 GB internal storage. The Mic-OPI™ probe interface provides automatic probe compensation and attenuation matching.

Key Features

• High bandwidth and deep memory: 500 MHz bandwidth; up to 360 Mpts memory for long waveform capture.
• Excellent signal integrity: Low noise floor (<90 µVrms) and high waveform capture rate (230,000 wfms/s).
• Advanced acquisition modes: Segmented storage for efficient capture of intermittent events (serial packets, pulses).
• User-friendly operation: 14-inch high-resolution capacitive touch screen (1920x1200) with intuitive UI.
• Smart probe interface: Mic-OPI™ for automatic probe attenuation matching and compensation.
• Extensive connectivity and control: PC/mobile remote control, SCPI command support and 32 GB internal storage.
• Comprehensive protocol analysis: Built-in decoding for CAN FD, LIN, SPI, I²C, ARINC-429 and MIL-STD-1553B.
• Space-saving form factor: Ultra-thin design (35.8 mm) with wall or arm mounting options.

Specifications
Analog channels — 4
Bandwidth — 500 MHz
Memory depth — 360 Mpts
Real-time sampling rate — 3 GSa/s
Rise time — ≤0.7 ns
Waveform capture rate — 230,000 wfms/s
Noise floor — <90 µVrms
Display — 14-inch capacitive touch, 1920 x 1200
Internal storage — 32 GB
Probe interface — Mic-OPI™ (automatic probe compensation)

Technical details

• Article Number: OS1079
• Manufacturer Code: OSC010006
• Manufacturer: Micsig
• Model: MDO5004
• Analog channels: 4
• Bandwidth: 500 MHz
• Memory depth: 360 Mpts
• Real-time sampling rate: 3 GSa/s
• Waveform capture rate: 230,000 wfms/s
• Noise floor: <90 µVrms
• Display: 14-inch anti-glare capacitive touch screen, 1920 x 1200
• Internal storage: 32 GB
• Probe interface: Mic-OPI™ (automatic probe compensation)
• Supported serial bus decoding: CAN FD, LIN, SPI, I²C, ARINC-429, MIL-STD-1553B
• Advanced analysis: segmented storage, advanced math and FFT
• Form factor: ultra-thin (35.8 mm); supports wall or arm mounting
