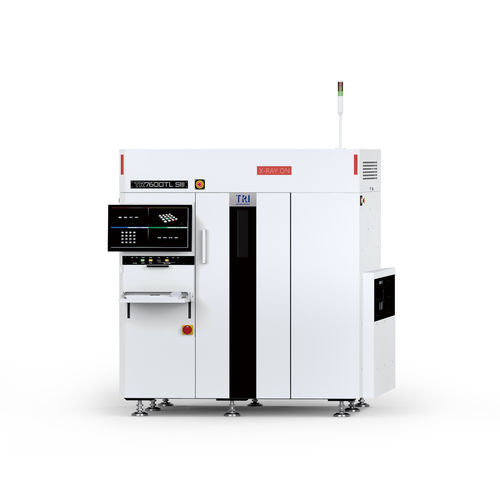

CCD inspection system TR7600TL SIII

3Dautomatedmeasurement

Introduction
The TR7600TL SIII is an inline 3D AXI inspection system with optional planar CT capability, designed for X-ray inspection of large PCBs up to 1200 × 660 mm. It combines multi-unit line-scan imaging with a variable-voltage X-ray source to support 2D, 2.5D and 3D inspection workflows.

Features

• 3- or 5-unit line-scan CCD configuration (9 or 15 sensors)
• CT-capable imaging and 3D slicing modes (planar CT optional)
• Smart programming and recipe management for automated inspection

Imaging System
Camera: Ultra-high-speed line-scan CCD cameras (3 or 5 units; 9 or 15 sensors).
X-ray source: 60–130 kV.
Imaging resolution: 10 μm–25 μm.
Inspection methods: 2D, 2.5D, 3D slicing; planar CT optional.

Motion Table & Control
X/Y/Z axes: high-precision ballscrew drives with AC-servo control.
X-Y axis resolution: N/A.

Board Handling
Max PCB size: 1200 × 660 mm.
PCB thickness supported: 0.6–7 mm.
Max PCB weight: 12 kg.
Top clearance examples: @25 μm → 50 mm; @20 μm → 50 mm; @15 μm → 30 mm; @10 μm* → 15 mm.
Bottom clearance examples: @25 μm → 55 mm; @20 μm → 70 mm; @15 μm → 70 mm; @10 μm → 70 mm.
Edge clearance: 3 mm or 5 mm.
Conveyor height: 880–920 mm (optional 940–965 mm).

Inspection Functions

• Capabilities: missing, misalignment, tombstone, billboard, tantalum polarity, rotation, floating
• Detectable defects: insufficient/excess solder, bridging, open, solder ball, non-wetting, voids, lifted lead

Dimensions & Power
Overall (WxDxH): 2014 × 2000 × 1940 mm (excluding signal tower height 510 mm).
Weight: 4750 kg.
Power: 200–240 VAC, three-phase, 50/60 Hz, 7 kVA. Optional transformer for 346–416 VAC.

Technical specifications

• Model: TR7600TL SIII
• Camera: Ultra-high-speed line-scan CCD (3 or 5 units; 9 or 15 sensors)
• X-ray voltage range: 60–130 kV
• Imaging resolution: 10–25 μm
• Inspection methods: 2D, 2.5D, 3D slicing; planar CT (optional)
• Max PCB size: 1200 × 660 mm
• PCB thickness supported: 0.6–7 mm
• Max PCB weight: 12 kg
• Top clearance examples: 25 μm → 50 mm; 20 μm → 50 mm; 15 μm → 30 mm; 10 μm → 15 mm
• Bottom clearance examples: 25 μm → 55 mm; 20 μm → 70 mm; 15 μm → 70 mm; 10 μm → 70 mm
• Edge clearance: 3 mm or 5 mm
• Conveyor height: 880–920 mm (optional 940–965 mm)
• Dimensions (WxDxH): 2014 × 2000 × 1940 mm
• Weight: 4750 kg
• Power: 200–240 VAC, three-phase, 50/60 Hz, 7 kVA (optional 346–416 VAC transformer)
