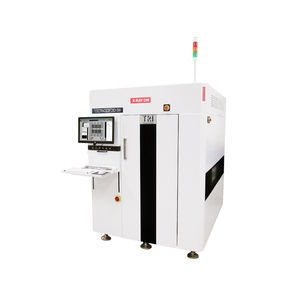

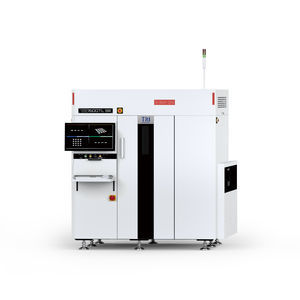

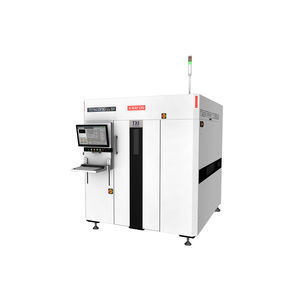

X-ray inspection machine TR7600 SIII

computed tomographyCT3D

Introduction
The TR7600 SIII series CT AXI is a next-generation inline PCBA inspection system from Test Research, Inc. (TRI). Engineered for 100% inspection at production line speed, the TR7600 SIII combines high-speed 3D CT X‑ray imaging with enhanced image quality to support reliable solder joint and component inspection.

Features

• Ultra-high speed 3D CT X-ray inspection
• Improved image quality for accurate defect detection
• True 3D solder-joint viewer
• High resolution suitable for 01005in components

Imaging System
Camera: Ultra-high speed line-scan CCD cameras, 3 or 5 units (9 or 15 sensors)
X-ray source: 60–130 kV
Imaging resolution: 7 μm–20 μm
Inspection methods: 2D, 2.5D, 3D slicing; Planar CT (optional)

Motion Table & Control
X/Y/Z axes: high-precision ballscrew with AC-servo control
X–Y axis resolution: N/A (application-dependent)

Board Handling
Max PCB size: 900 x 520 mm
PCB thickness: 0.6–7 mm
Max PCB weight: 12 kg
Top clearance by resolution: @20 μm = 50 mm; @15 μm = 30 mm; @10 μm = 15 mm; @7 μm = 7 mm
Bottom clearance: 70 mm
Edge clearance: 3 mm or 5 mm
Conveyor height: 880–920 mm (optional 940–965 mm)
SMEMA compatible

Inspection Functions

• Component checks: presence, misalignment, rotation, polarity, tombstone, floating, billboard
• Defect detection: insufficient/excess solder, bridging, open, solder balls, non‑wetting, voids, lifted leads

Dimensions
WxDxH: 1470 x 2110 x 1975 mm (excluding signal tower; tower height: 510 mm)
Weight: 3850 kg
Power: 200–240 VAC single phase, 50/60 Hz, 4 kVA

Video
Embedded product video available demonstrating TR7600 SIII operation and features.

Technical specifications

• Model: TR7600 SIII
• Brand: Test Research, Inc. (TRI)
• Camera: Ultra-high speed line-scan CCD, 3 or 5 units (9 or 15 sensors)
• X-ray voltage: 60–130 kV
• Imaging resolution: 7 μm–20 μm
• Inspection methods: 2D, 2.5D, 3D slicing, Planar CT (optional)
• Max PCB size: 900 x 520 mm
• PCB thickness: 0.6–7 mm
• Max PCB weight: 12 kg
• Top clearance (by resolution): 20 μm → 50 mm; 15 μm → 30 mm; 10 μm → 15 mm; 7 μm → 7 mm
• Bottom clearance: 70 mm
• Edge clearance: 3 mm or 5 mm
• Conveyor height: 880–920 mm (optional 940–965 mm)
• Dimensions (WxDxH): 1470 x 2110 x 1975 mm (excluding signal tower)
• Weight: 3850 kg
• Power: 200–240 VAC single phase, 50/60 Hz, 4 kVA
• SMEMA compatible
• Key inspection capabilities: component presence, alignment, tombstone, bridging, void detection, lifted leads, polarity, rotation, floating detection
