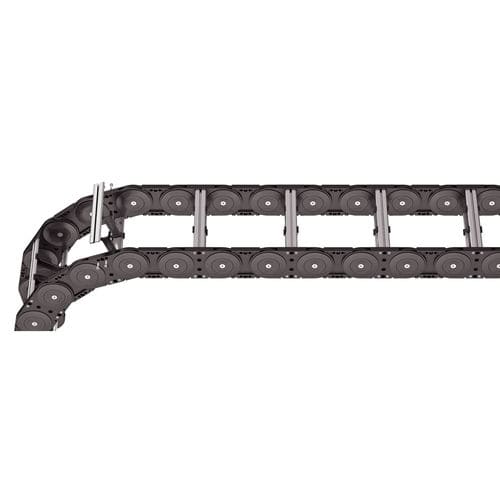

Open drag chain XLC1650 RM

steelplasticaluminum

Aluminum stay RM – Frame stay, solid Properties Aluminum profile bars for heavy loads and maximum cable carrier widths. Double threaded joints on both sides “Heavy Duty”. Available customized in 1 mm grid. Inside/outside: Threaded joints easy to release. Stay arrangement on every 2nd chain link, standard (HS: half-stayed) Stay arrangement on each chain link (VS: fully-stayed) Bi 200 – 1000 mm in 1 mm width sections Dimensions The maximum cable diameter strongly depends on the bending radius and the desired cable type. Divider systems The divider system is mounted on every 2nd chain link as a standard. As a standard, dividers and the complete divider system (dividers with height separations) can be moved in the cross section (version A). End connectors End connectors – steel End connectors made of steel. The connection variants on the fixed point and on the driver an be combined and changed later on, if necessary. Connection point F – fixed point M – driver Connection type A – threaded joint outside (standard) I – threaded joint inside F – flange connection Connection surface I – connection surface inside A – connection surface outside
