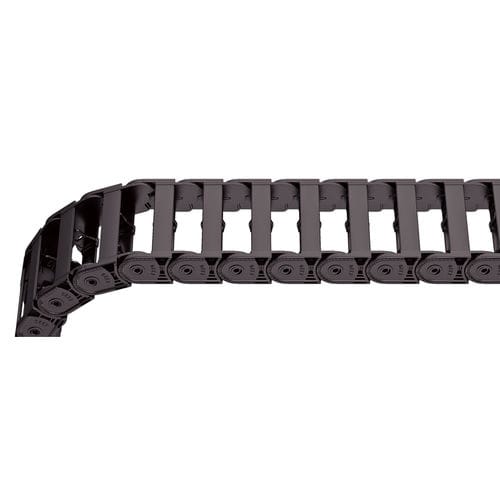

Snap-open drag chain UA1320.020

plastic

Weight-optimised, closed plastic frame with particularly high torsional rigidity. Outside/inside: not openable. The maximum cable diameter strongly depends on the bending radius and the desired cable type. Inner distribution Divider systems The divider system is mounted on every 2nd chain link as a standard. As a standard, dividers and the complete divider system (dividers with height separations) can be moved in the cross section (version A). End connectors Single-part end connectors – plastic (with integrated strain relief) The plastic end connectors can be connected from above or below. The connection type can be changed by altering the position of the end connector. The end connectors are also available as an option without integrated strain relief. Please state when ordering. Connection point F – fixed point M – driver Connection type A – threaded joint outside (standard) I – threaded joint inside H – threaded joint, rotated 90° to the outside K – threaded joint, rotated 90° to the inside
