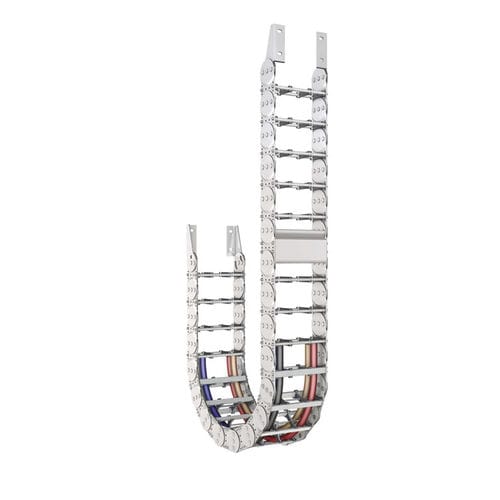

Openable drag chain S/SX series

steelstainless steelaluminum

Extremely robust and sturdy covered steel cable carriers Aluminum covers available in 1 mm width sections 4 bolted aluminum covers for extreme loads Joint design with hardened bolts for long service life Cranked link plate design Can be opened on the inside and the outside for cable laying Different separation options for the cables Extremely robust side bands, galvanized or stainless steel Steel band cover available in 1 mm width sections Replaceable glide shoes End connectors for different connection variants Extremely robust, sturdy steel cable carriers for heavy mechanical loads and rough environmental conditions Side bands made of galvanized steel (S series) or corrosion-resistant and acid-resistant steel (SX series) in three qualities: ER 1 / ER 1S and ER 2 Very sturdy link plates, each consisting of two individual plates Very extensive unsupported lengths even with large additional loads Joint design with multi stroke system and hardened bolt Bolted stay systems, solid end connectors Explosion protection with classification EX II 2 GD as per ATEX RL The design Proven steel cable carriers with extremely sturdy link plates and dedicated joint design with multi stroke system and hardened bolt. The extremely sturdy design allows extensive unsupported lengths and high possible additional loads. S/SX0650 Tubes Inner height [hi]: 30 mm Chain widths [Bk]: 100 – 500 mm Pitch [t]: 65 mm Bending [KR]: 115 – 400 mm S/SX0950 Tubes Inner height [hi]: 44 mm Chain widths [Bk]: 125 – 600 mm Pitch [t]: 95 mm Bending [KR]: 170 – 600 mm S/SX1250 Tubes Inner height [hi]: 69 mm Chain widths [Bk]: 150 – 800 mm Pitch [t]: 125 mm Bending [KR]: 200 – 1000 mm
