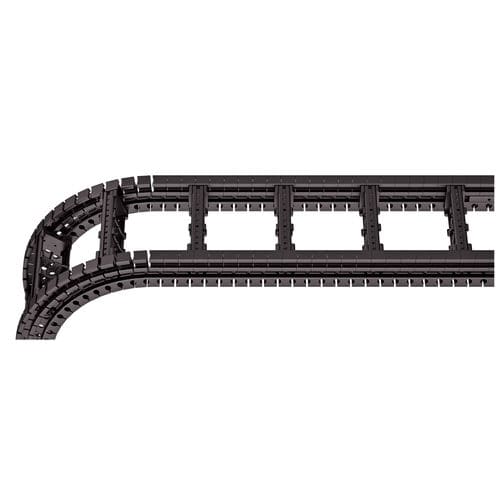

Open drag chain QUANTUM®

steelplasticaluminum

Light, extremely quiet and low-vibration for high speeds and accelerations Universal end connectors (UMB) Aluminum stays available in 1 mm width sections Aluminum stays in reinforced design Plastic stays available in 8 or 16 mm width sections Can be opened quickly on the inside and the outside for cable laying Fixable dividers Replaceable glide shoes Strain relief combs C-rail for strain relief elements Cleanroom compatible: no links, no link wear Extremely quiet, 31 db (A)* Extremely light For high accelerations up to 300 m/s2 For high operating speeds up to 40 m/s Extremely long service life: ≥ 25 million motion cycles TÜV type tested as per 2PfG 1036/10.97 Large selection of stay systems and separating options for cables Continuous side bands are used. In contrast to conventional hole-and-bolt connections, hardly any wear occurs (link abrasion), which makes QUANTUM® ideal for use in cleanrooms. Extremely long service life through No link abrasion due to absence of hole-and-bolt connections Continuous side bands made from special plastic with integrated steel cables The QUANTUM® runs extremely quietly and with low vibrations. The absence of links and the very small pitch means that the so-called polygon effect is reduced to a minimum. Due to the very quiet running, the QUANTUM® cable carrier system is ideal for applications with low-vibration linear drives.
