Open drag chain LS/LSX 1050 series
steelaluminumwith separators

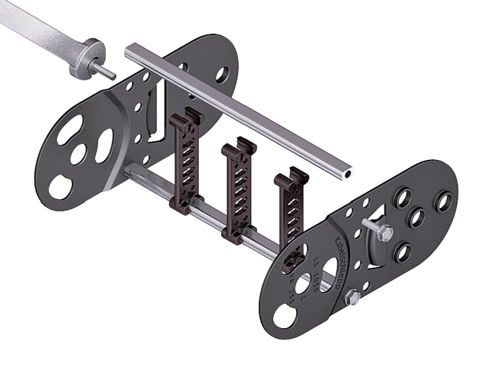

Open drag chain - LS/LSX 1050 series - TSUBAKI KABELSCHLEPP - steel / aluminum / with separators
Open drag chain - LS/LSX 1050 series - TSUBAKI KABELSCHLEPP - steel / aluminum / with separators
Open drag chain - LS/LSX 1050 series - TSUBAKI KABELSCHLEPP - steel / aluminum / with separators - image - 2
Open drag chain - LS/LSX 1050 series - TSUBAKI KABELSCHLEPP - steel / aluminum / with separators - image - 3
Open drag chain - LS/LSX 1050 series - TSUBAKI KABELSCHLEPP - steel / aluminum / with separators - image - 4
Open drag chain - LS/LSX 1050 series - TSUBAKI KABELSCHLEPP - steel / aluminum / with separators - image - 5
Open drag chain - LS/LSX 1050 series - TSUBAKI KABELSCHLEPP - steel / aluminum / with separators - image - 6
Open drag chain - LS/LSX 1050 series - TSUBAKI KABELSCHLEPP - steel / aluminum / with separators - image - 7
Open drag chain - LS/LSX 1050 series - TSUBAKI KABELSCHLEPP - steel / aluminum / with separators - image - 8
Open drag chain - LS/LSX 1050 series - TSUBAKI KABELSCHLEPP - steel / aluminum / with separators - image - 9
Open drag chain - LS/LSX 1050 series - TSUBAKI KABELSCHLEPP - steel / aluminum / with separators - image - 10
Open drag chain - LS/LSX 1050 series - TSUBAKI KABELSCHLEPP - steel / aluminum / with separators - image - 11
Add to favorites
Compare this product

Characteristics

Type
open
Material
steel, aluminum
Other characteristics
with separators, slip
Width

Min.: 100 mm
(3.94 in)

Max.: 600 mm
(23.62 in)

Displacement speed

Min.: 0 m/s
(0 ft/s)

Max.: 5 m/s
(16.4 ft/s)

Description

Stay variants LS/LSX1050 RS 2 Frame stay narrow, bolted Quick to open and close. Aluminum profile bars for light to medium loads. Easy threaded connection. Inside/outside: Threaded joint easy to release. LS/LSX1050 RV Frame stay, reinforced Aluminum profile bars for medium to heavy loads and large cable carrier widths. Double threaded joint on both sides. Inside/outside: Threaded joint easy to release. LS/LSX1050 RR Frame stay, tube version Steel rolling stays with gentle cable support and steel dividers. Ideal for using media hoses with soft sheathing. Inside/outside: Screw connection detachable. LS/LSX1050 LG Frame stay, split Optimum cable routing in the neutral bending line. Split version for easy cable routing. Stays also available unsplit. Inside/outside: Threaded joint easy to release. LS/LSX1050 RMA Mounting frame stay Aluminum profile bars with plastic mounting frame stays for guiding very large cable diameters. Outside/inside: Screw-fixing easy to release.
