Closed frame
Weight-optimised, closed plastic frame with particularly high torsional rigidity.
Outside/inside: not openable.
Frame with inside detachable crossbars
Weight-optimised plastic frame with particularly high torsional rigidity.
Inside: openable and detachable.

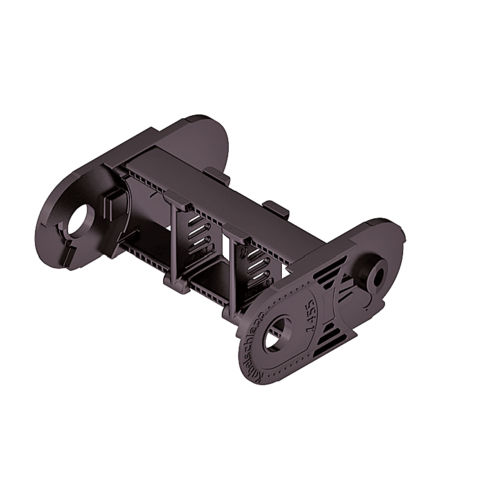

Frame with outside detachable crossbars
Weight-optimised plastic frame with particularly high torsional rigidity.
Outside: openable and detachable.
Load diagram for unsupported length depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 0.75 kg/m with Bi 38 mm. For other inner widths, the maximum additional load changes.
