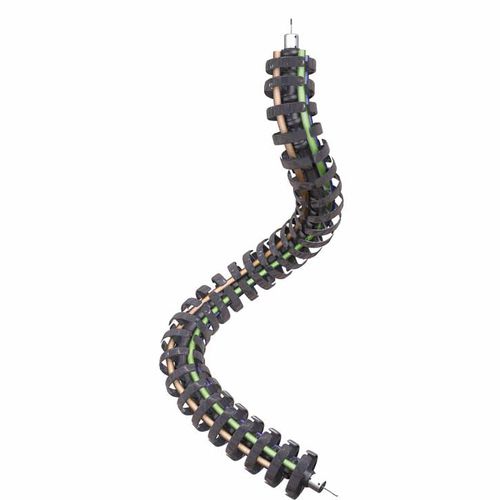

Open drag chain ROBOTRAX®

plasticsteelcircular

ROBOTRAX® SYSTEM Cable carrier for 3D movements Steel cable for transferring extremely high tensile forces Tension piece for locking the chain links Special plastic for long service life Open design – Fast cable laying as the cables are simply pressed in – Easy checking of all cables Protective covers or heat shields made from different materials are available for different environmental conditions Quick-release bracket for fixing and continuation Strain relief with LineFix clamps Protection against hard impacts, excessive abrasion and premature wear as well as limitation of the bending radius through protector Features Suitable for three-dimensional swivel and rotation movements Ideal for a long service life of the cables: – The bending radius does not fall below the minimum – The cables can be separated in three chambers Also ideal for turntables R040 Inner heights [hi]: 10 mm Inner widths [Bi]: 27 mm Pitch [t]: 21.5 mm R075 Inner heights [hi]: 22 mm Inner widths [Bi]: 52 mm Pitch [t]: 40 mm Bending [KR]: 125 [140] mm R100 Inner heights [hi]: 31 mm Inner widths [Bi]: 64 mm Pitch [t]: 40 mm Bending [KR]: 130 [175] mm R140X Inner heights [hi]: 48 mm Inner widths [Bi]: 74 mm Pitch [t]: 50 mm Bending [KR]: 125 [225] mm
