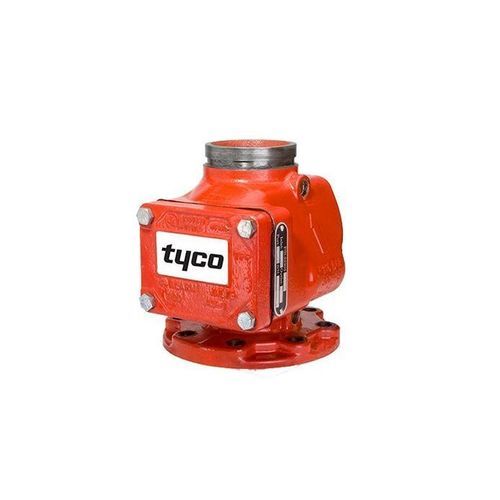

Swing check valve AV-1-300

for waterflangedouble-flange

Summary
Tyco® Model AV-1-300 alarm valves are divided-seat ring, rubber-faced clapper, waterflow alarm valves designed for wet-pipe fire protection systems. They automatically actuate electric and/or hydraulic alarms when steady water flow into the system equals the discharge rate of one or more sprinklers. An optional Model RC-1 retard chamber is available for installations subject to variable pressures. Valve trim includes pressure gauges, a bypass check valve, a main drain valve and an alarm test valve. The bypass check valve helps prevent false alarms by allowing slow or small transient supply pressure increases without opening the clapper.

Features

• Can be installed vertically or horizontally
• Automatically actuates electrically and/or hydraulically operated alarms at steady flows equivalent to one or more sprinklers
• Available preassembled with modular trim for faster valve riser installation
• Designed for use in wet-pipe (automatic sprinkler) systems
• Optional RC-1 retard chamber for installations with variable supply pressure to reduce false alarms
• Available with European Conformity trim (see product technical references)

Benefits

• Proven reliability — Tyco® products have supported fire protection systems for over a century
• Comprehensive offering — part of a broad portfolio of valves, sprinklers, water mist, foam concentrates and related hardware

Product information (table)
Listings and approvals: UL and C-UL Listed, FM Approved
Pressure rating: 20 to 300 psi (1.4 to 20.7 bar)
Sizes: 2.5 inch (DN65), 4 inch (DN100), 6 inch (DN150), 8 inch (DN200)

Technical Specification (table)
Connection type: Groove x Groove, Flange x Groove, Flange x Flange
Sizes: 2.5 inch (DN65), 4 inch (DN100), 6 inch (DN150), 8 inch (DN200)
Listings and approvals: UL and C-UL Listed, FM Approved
Pressure rating: 20 to 300 psi (1.4 to 20.7 bar)

Caractéristiques / Spécifications techniques

• Model: AV-1-300
• Connection types: Groove x Groove, Flange x Groove, Flange x Flange
• Sizes: 2.5" (DN65), 4" (DN100), 6" (DN150), 8" (DN200)
• Pressure rating: 20 to 300 psi (1.4 to 20.7 bar)
• Listings and approvals: UL and C-UL Listed, FM Approved
• Optional equipment: Model RC-1 retard chamber for variable-pressure installations
• Valve trim includes: pressure gauges, bypass check valve, main drain valve, alarm test valve
