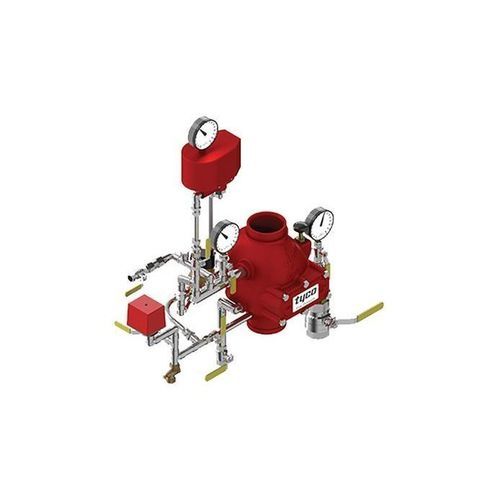

Electric valve DPV-1

for waterthreadedflange

Overview
The DPV-1 preaction valve (Type B) automatically controls water admission to preaction piping during fire detection events. Type B (single interlock, electric) systems are intended for areas at risk of freezing—such as unheated warehouses, parking garages and attics—where the pipe network is normally dry and is prefilling only after detection or sprinkler release. This arrangement reduces water delivery delay compared with standard dry pipe systems.

Product Details
System and actuation: Type B (Single Interlock - Electric)
Approvals: VdS Approved
Available sizes: DN100, DN150 (DN65 and DN80 on request without approvals)
Installation orientation: Vertical installations only (flow upward)

Features

• EN12845 compliant
• Ductile-iron body
• Quick external reset to eliminate priming water
• Multiple inlet/outlet connection options: Grooved, Flanged, Threaded (NPT)
• Designed for vertical, upward flow installation
• Available in DN100 and DN150 with DN65/DN80 options on request

Benefits

• Fast response for cold environments: Prefilling on alarm reduces delivery time versus standard dry systems
• Reliable operation with minimal moving parts for simplified maintenance
• Compatible with standard industrial connection types for straightforward integration
• Proven lineage: Tyco® products support fire protection needs worldwide

Technical Specification

• Model: DPV-1 Preaction Type B Valve
• Connection types: Grooved x Grooved; Flange x Flange; Flange x Grooved; Thread x Thread NPT
• Pressure rating: 16 bar
• Standard sizes: DN100, DN150 (DN65 and DN80 available on request without approvals)
• System / actuation: Type B (Single Interlock - Electric)
• Listings / approvals: VdS Approved
• Body material: Ductile-iron
• Installation note: For vertical installations only (flow going up)
• Maintenance: Quick external reset to eliminate priming water
