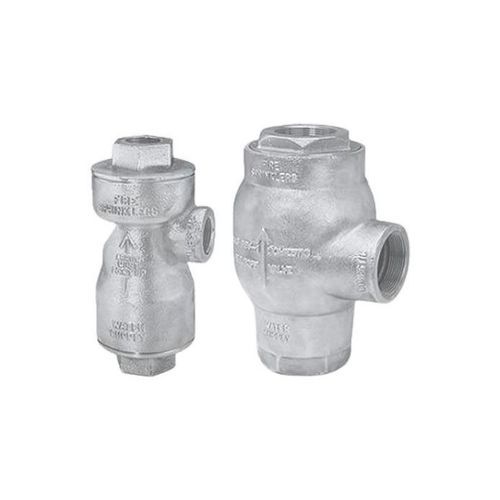

Pressure valve RSV-1

manualshut-offthreaded

Product Overview
Tyco® Model RSV-1 residential shut-off valves are designed for use in dual-purpose residential water supply piping serving both domestic use and residential fire protection sprinkler systems. When a fire sprinkler operates, the RSV-1 automatically diverts the available water supply to the sprinkler system and automatically resets after operation or testing, eliminating the need to disassemble the valve and maximizing the effective use of an existing water supply, potentially avoiding pumps or pressurized reservoirs.

Key Information

• Listings and Approvals: UL and C-UL Listed; NSF Approved
• Pressure rating: 175 psi (12.1 bar)
• Sizes: 1 inch (DN25); 2 inch (DN50)
• Connection type: NPT thread

Features

• Two available sizes: 1 in (DN25) for NFPA 13D; 2 in (DN50) for NFPA 13D or NFPA 13R
• Self-resetting design — no disassembly required after operation or testing
• Eliminates need for electrically operated solenoid valves
• Suitable for retrofit applications and newly developed lots
• Can mitigate local requirements based on mandated domestic load and hydraulic safety factors
• Compatible with backflow preventers
• Built-in check valve eliminates need for a separate check valve on the fire sprinkler system

Benefits

• Reduce costs — may eliminate the need for a separate fire line and meter, lowering upfront investment and long-term maintenance
• Simplify installation — built-in check valve can remove need for a separate check valve (subject to local approval)
• Trusted performance — leverages Tyco® industry experience
• Potential cost offsets through reduced pipe size

Technical specifications

• Connection type: NPT thread
• Sizes: 1 inch (DN25); 2 inch (DN50)
• Listings and Approvals: UL and C-UL Listed; NSF Approved
• Pressure rating: 175 psi (12.1 bar)
• Weight: 1 in (DN25): 11 lbs (5 kg); 2 in (DN50): 29 lbs (11 kg)
• Built-in check valve included
• Self-resetting shut-off valve intended for dual-purpose domestic and fire sprinkler systems
