Water pump ZETA 120 series
diaphragmstationaryindustrial

water pump
water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water
Technology
diaphragm
Mobility
stationary
Domain
industrial, chemical
Applications
high-pressure, sewage, washing, firefighting, spray, descaling
Material
aluminum, plastic
Other characteristics
mechanical, standard, double, flow, reinforced
Flow

Max.: 135 l/min
(35.66323 us gal/min)

Min.: 81.9 l/min
(21.63569 us gal/min)

Pressure

Max.: 20 bar
(290.075 psi)

Min.: 0 bar
(0 psi)

Power

Max.: 4.2 W
(0.01 hp)

Min.: 0.6 W
(0 hp)

Length

340 mm
(13 in)

Width

319 mm
(12.56 in)

Height

319 mm
(12.56 in)

Weight

17.5 kg, 17.8 kg, 18 kg, 18.5 kg
(38.58 lb, 39.24 lb, 39.68 lb, 40.79 lb)

Description

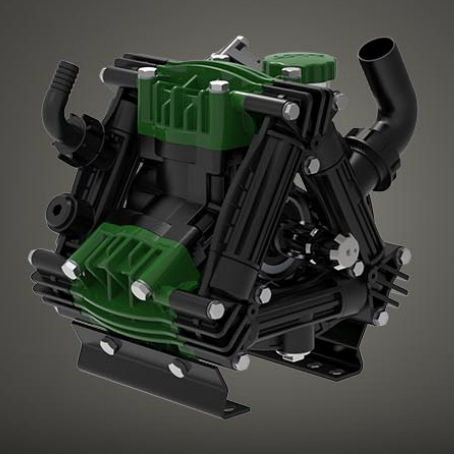

The 3-diaphragms pump ZETA 120 produces a flow of 116 l/min and operates at a maximum pressure of 20 bar. It is available with single or double splined/cylindrical shaft. Semi-Hydraulic diaphragm pump with aluminium plastic coating heads and nylon reinforced manifolds suitable for chemical products, die casted aluminum crankcase with cataphoresis coating resistant to corrosion, valves with spherical design to increase the volumetric efficiency, pistons with ring to ensure less wear of the pumping parts. It is equipped as standard with the new GREENTECH diaphragm, made of an innovative material that reduces the deformation caused by use and improves the mechanical and chemical resistance.
